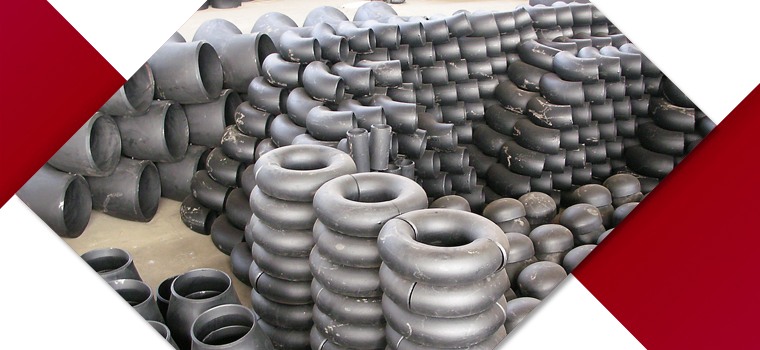

Gautam Tubes is today are highly acclaimed for being the best manufacturer, exporter and supplier of the ASTM A 234 WP22 BUTTWELD FITTINGS. We are the customer-oriented industry that is always taking care of the needs of different clients and are thus making it available to those at various specifications. It thus varies in standards, dimensions, sizes, types, bending radius, types, and wall thickness. Also, it is made available to the clients at customized specifications as per the demands buyers have made from us.
ASTM A 234 is covering the wrought carbon steel as well as alloy steel fitting of the welded and seamless constructions that are covered by the new versions of MSS-SP-97/83/79/95 and ASME B16.9/16.11. The fittings are used in the pressure vessel and pressure piping fabrications for the services at the average and elevated temperatures. Killed steel with bars, forging, plates, sheets, the fusion-welded or seamless tubular product is with the filler metal are added. The shaping or forging operation is done by the techniques like pressing, hammering, piercing, upsetting, extruding, machining, rolling, and bending or by the combination of these techniques.
After forming at the elevated temperature, the fitting is cooled to the temperature below a critical range under the appropriate conditions for preventing the damaging caused by the fast cooling. Heat treatment temperature specified is metal temperature.
ASTM A234 Alloy Steel WP22 Pipe Bend, Wrought Alloy Steel WP22 Industrial Pipe Fittings Price List, Alloy Steel WP22 45 Deg Elbow, WP22 Alloy Steel LR /SR Elbow, Chromium-Molybdenum Alloy Steel WP22 Buttweld Pipe Fittings Distributors, Alloy Steel ASTM A234 WP22 Welded Fittings, Alloy Steel ASTM A234 WP22 Buttweld Fittings Exporter in India.
Some of the properties found in the ASTM A234 WP22 BUTTWELD FITTINGS are making it an ideal selection for tough applications. It is-
» High hardness
» Long serviceability
» Rugged construction
» Pitting and oxidation resistance
» Long serviceability
» Good dimensional accuracy
» Fine surface finishes
The development of ASTM A234 WP22 BUTTWELD FITTINGS at our manufacturing unit is done by using the superior quality of alloy. The alloy used is well tested and quality assured. We are making the use of refined technology and modern tools to add greater strength to the quality of the fittings. We are also doing the designing and fabrication of buttweld fittings according to the well-defined manufacturing norms and product quality standards.
Standard Specification and Size Range of Alloy Steel WP22 Pipe Fittings
Specifications : ASTM A234 / ASME SA234
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
ASTM A234 WP22 Elbow
Alloy Steel WP22 Elbow, CrMo WP22 Elbow, ASME SA234 WP22 Elbow, A234 WP22 Pipe Elbow, ASTM A234 Alloy Steel WP22 45° Elbow, Chrome Moly A234 WP22 90° Elbow, A234 WP22 180° Elbow
ASTM A234 WP22 Tee
Alloy Steel WP22 Tee, A234 Cr-Mo Steel WP22 Pipe Tee, ASTM A234 Alloy Steel WP22 Equal Tee, ASME SA 234 WP22 Reducing Tee, Chrome Moly WP22 Tee, Alloy Steel ASTM A234 WP22 Unequal Tee,
ASTM A234 WP22 Reducer
Alloy Steel WP22 Concentric Reducer, ASTM A234 WP22 Alloy Steel Eccentric Reducer, CrMo WP22 Reducer, Grade WP22 Alloy Steel Reducer, Chrome Moly A234 WP22 Pipe Reducers
ASTM A234 WP22 Stub End
Alloy Steel WP22 Long Stub End, ASME SA 234 WP22 Short Stubend, ANSI B16.9 Alloy Steel A234 WP22 Lap Joint Stub End, Chrome Moly ASTM A234 WP22 Stub End, CrMo Alloy Steel WP22 Stub End
ASTM A234 WP22 Cap
Alloy Steel WP22 Cap, ASTM A234 WP22 End Cap, ASME SA234 WP22 Alloy Steel Pipe End Cap, Alloy Steel WP22 Pipe Cap, WP22 Chrome Moly Buttweld Cap, Alloy Steel ASTM A234 WP22 End Pipe Cap, ASTM A234 Cr-Mo Steel WP22 Cap
ASTM A234 WP22 Cross
Chrome Moly ASTM A234 WP22 Equal Cross, Alloy Steel WP22 Unequal Cross, A234 WP22 Reducing Cross, Alloy Steel WP22 Cross, ANSI B16.9 Alloy Steel WP22 Buttweld Cross
Chemical Composition of Alloy Steel Grade WP22 Buttweld Fittings
Grade | C | Mn | Si | S | P | Cr | Mo |
A234 WP22 | 0.05-0.15 | 0.3-0.6 | ≤0.5 | ≤0.04 | ≤0.04 | 2-2.5 | 0.87-1.13 |
Mechanical Properties of ASTM A234 Alloy Steel WP22 Buttweld Fittings
Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
A234 WP22 | 415-585 | ≥205 | ≥20 |
