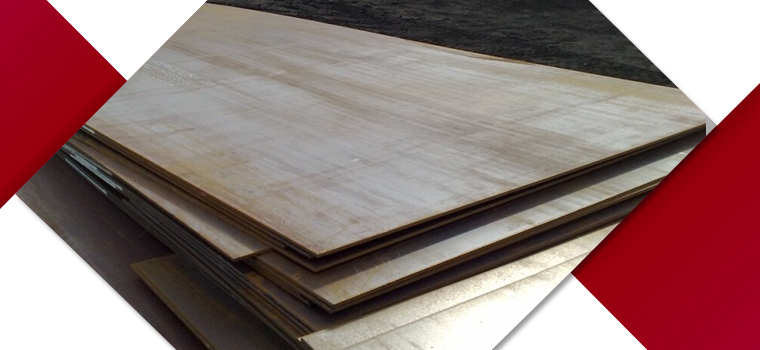

ASTM A387 Gr 5 Plates

Alloy Steel Gr 5 Plates, ASTM A387 Gr 5 Plates, Alloy Steel 1.7362 Plates, Alloy Steel UNS K41545 Plates, Alloy Steel Gr 5 HR Plates, ASTM A387 Gr 5 Pressure Vessel Steel Plates, Grade 5 Alloy Steel Class 1 Plates, ASTM A387 Alloy Steel Class 2 Plates, Alloy Steel Grade 5 Plates Supplier in Mumbai, India.

Low Alloy Steel Grade 5 Plates, Alloy Steel Gr 5 Plate Stockist, ASME SA 387 Grade 5 Alloy Steel Class 1 Plates, Best Price of Grade 5 Alloy Steel Class 2 Plates, Chrome Moly Grade 5 Plates, ASTM A387 CrMo Gr 5 Class 1 Plates, ASTM A387 GR 5 Alloy Steel Plates Manufacturer in India.

Gautam Tubes are today ranking on the top because of being the best manufacturer, exporter, and supplier of the quality of plates. We as a customer-oriented dealer are offering the ASTM / ASME A / SA 387 Grade 5 / F5 Plates to the clients at various standard specifications.

Standard Specification and Size Range of Alloy Steel Gr 5 Plates

Specifications : ASTM A387 / ASME SA387

Width : 1000mm-4500mm

Length : 3000mm-18000mm

Thickness : 5mm-150mm

Process of Manufacturing : Hot-Rolled (HR)

Supply Condition : As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.

Standard : EN 10083-3 : Steels for Quenching and Tempering: Technical Delivery Conditions for Alloy Steels EN 10028-2: Flat products made of steels for pressure purposes. Non-alloy and alloy steels with specified elevated temperature properties

ASME SA 387 Gr 5 Alloy Steel Plates Equivalent Grades

UNS K41545
DIN 1.7362
JIS -
EN -
BS -

Types Of Alloy Steel GR 5 Plates Stock

Alloy Steel Class 1 Grade 5 Plates

ASTM A387 Alloy Steel Gr 5 Class 1 Plates

Grade 5 Alloy Steel Class 1 Plates, Alloy Steel GR 5 Cl 1 Plates, UNS K41545 Plates, DIN 1.7362 Plates, Gr 5 Alloy Steel Class 1 Plates

Alloy Steel Class 2 Grade 5 Plates

ASTM A387 Alloy Steel Gr 5 Class 2 Plates

Alloy Steel Gr 5 Class 2 Plates, Chrome Moly 1.7362 Class 2 Plates, UNS K41545 Class 2 Plates, Cr-Mo Grade 5 Class 2 Plates

Alloy Steel CL. 1/2 Plates

ASTM A387 Alloy Steel CL. 1/2 Plates

Chrome Moly CL 1 / 2 Plates, Alloy Steel Gr 5 CL 1/2 Plates, Class 1 / 2 Alloy Steel K41545 Plates, Cr-Mo DIN 1.7362 Plates

Chemical Composition of Alloy Steel Grade 5 Plates

Grade C Mn P S Si Cr Mo
GR.5 CL.1/2 0.15 max 0.25 - 0.66 max 0.035 max 0.030 max 0.055 max 3.9 – 6.1 0.40 - 0.7

Mechanical Properties of ASTM A387 CrMo Gr 5 Plates

A387 / SA387 Grade 5 Tensile Strength (ksi) Tensile Strength (MPa) Yield Strength (ksi) Yield Strength (MPa) Elongation in 50mm (%) Reduction of area in %
Class 1 60-85 415-585 30 205 18 % 45 %
Class 2 75 - 100 515-690 45 310 18 % 45 %
People Also Searched For
Alloy Steel Gr 5 Plates in oil and gas industries
Oil and Gas
Alloy Steel Gr 5 Plates in Chemical Industry
Chemical Industry
Alloy Steel Gr 5 Plates in Power Plants
Power Plant
 Alloy Steel Gr 5 Plates in Food Processing Industry
Food Industry
Alloy Steel Gr 5 Plates in Petrochemical Industry
Petrochemical
Alloy Steel Gr 5 Plates in Automotive
Automobile

Application Industries

  • Grade 5 Alloy Steel Plates uses in Plumbing
  • ASTM A387 Gr 5 Alloy Steel Plates uses in Heating
  • ASTM A387 Gr 5 Plates uses in Water Supply Systems
  • Cr-Mo Gr 5 Coil uses in Paper & Pulp Industry
  • Gr 5 AS Plates uses in General Purpose Applications
  • ASME SA387 Alloy Steel Gr 5 Plates uses in Fabrication Industry
