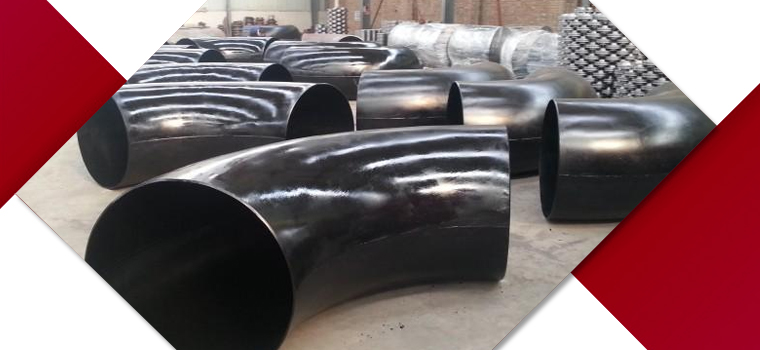

Gautam Tubes is a leading manufacturer, supplier, and exporter of the ASTM A420 WPL3 BUTTWELD FITTINGS. We are making and distributing the buttweld fittings to the clients at different bending radius, types, sizes, standards, dimensions. Also, we are providing the same to the industrialists in customized specifications according to the prerequisites of the clients. We are offering the product to the clients only once it gets certified and found conforming product quality standards with all essential copies of reports and certifications.
This specification is covering alloy steel and carbon steel fittings of welded and seamless constructions. It is covered by the new versions of MSS SP 95, MSS SP 79, ASME B16.11 and ASME B16.9. The fittings are differing from these MSS and ASME standards that shall be furnished as per the supplementary requirements S58 of specification A960M and A 960. The fittings are used into the pressure vessel and pressure piping services at low temperature. The optional supplementary prerequisites are provided for the fittings wherein the high degree of examination is desired. When needed, one or more of that supplementary requirement will be specified into the order.
No doubt our offered ranges of ASTM A420 WPL3 BUTTWELD FITTINGS are having many good features to offer. This is the only thing that is highly responsible for making the product high in use in various industries.
Wrought Carbon Steel ASTM A420 WPL3 Industrial Pipe Fittings Distributors, WPL3 Carbon Steel LR /SR Elbow, ASTM A420 Low Temperature Steel WPL3 Pipe Bend, ASTM A420 WPL3 Welded Fittings Price List, ASTM A420 WPL3 45 Deg Elbow, ASTM A420 WPL3 LTCS Butt-Welding Fittings Exporter in India.
Some features are like-
» High tensile strength
» Rugged constructions
» Pitting and oxidation resistance
» General corrosion resistance
» Long serviceability
» Anti-corrosiveness
» Durability
The manufacturing of ASTM A420 WPL3 BUTTWELD FITTINGS is done by using the premium quality of alloy. The alloy that we are using is acquired from reputable market mills. We are doing the development of these fittings as per set production norms and national and international production quality standards. The professionals are there to guide the workers at all level of product development to make sure that we furnish the commendable quality of fittings as per set standards. The quality of the same is examined thoroughly by the quality checkers to make sure that we design the excellent quality of fittings.
Standard Specification and Size Range of ASTM A420 WPL3 Carbon Steel Buttweld Fittings
Specifications : ASTM A420 / ASME SA420
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
ASTM A420 WPL3 Elbow
ASTM A420 WPL3 Carbon Steel Elbow, A420 WPL3 Pipe Elbow, LTCS ASTM A420 WPL3 45° Elbow, A420 WPL3 90° Elbow, ASTM A420 WPL3 180° Elbow
ASTM A420 WPL3 Tee
A420 WPL3 Carbon Steel Tee, ASTM A420 WPL3 Pipe Tee, A420 WPL3 Tee, LTCS WPL3 Unequal Tee, ASTM A420 Low Temperature Carbon Steel WPL3 Equal Tee, ASME SA 420 WPL3 Reducing Tee
ASTM A420 WPL3 Reducer
ASTM A420 WPL3 Concentric Reducer, ASTM A420 WPL3 Eccentric Reducer, ASTM A420 WPL3 Low Temperature Carbon Steel Pipe Reducers
ASTM A420 WPL3 Stub End
Carbon Steel WPL3 Long Stub End, ASME SA 420 WPL3 Short Stubend, ANSI B16.9 Carbon Steel A420 WPL3 Lap Joint Stub End
ASTM A420 WPL3 Cap
A420 WPL3 Carbon Steel Cap, LTCS ASTM A420 WPL3 End Cap, ASME SA420 WPL3 Pipe End Cap, Carbon Steel WPL3 Pipe Cap, A420 WPL3 Buttweld Cap, ASTM A420 WPL3 End Pipe Cap
ASTM A420 WPL3 Cross
LTCS ASTM A420 WPL3 Equal Cross, Low Temperature Steel WPL3 Unequal Cross, ASTM A420 WPL3 Reducing Cross, A420 WPL3 Pipe Cross, ANSI B16.9 Carbon Steel WPL3 Buttweld Cross
Chemical Composition of Low Temperature Carbon Steel Grade WPL3 Buttweld Fittings
Grade | C | Mn | P | S | Si | Ni |
A420 WPL3 | ≤0.20 | 0.31-0.64 | ≤0.05 | ≤0.05 | 0.13-0.37 | 3.2-3.8 |
Mechanical Properties of ASTM A420 WPL3 Low Temperature Carbon Steel Buttweld Fittings
ASTM A420/ A420M | Tensile Strength, min. | Yield Strength, min. | Elongation %, min | |||
Grade | ksi | MPa | ksi | MPa | Longitudinal | Transverse |
WPL3 | 65-90 | 450-620 | 35 | 240 | 22 | 14 |
People Also Searched For
astm a420 carbon steel wpl3 pipe fittings supplier, carbon steel astm a420 wpl3 long radius elbow – lr elbow, carbon steel astm a420 wpl3 1d elbow dealers, carbon steel astm a420 wpl3 schedule 40 buttweld fittings, astm a420 wpl3 carbon steel pipe fitting price, carbon steel asme sa420 wpl3 pipe nipple exporter in india, astm a420 wpl3 carbon steel low temperature buttweld fittings manufacturers in india, astm a420 wpl3 carbon steel piggable bend, carbon steel a420 wpl3 long radius bend, buy best and high quality carbon steel astm a420 wpl3 fittings at competitive price, astm a420 wpl3 welded elbow, aisi wpl3 pipe fittings, carbon steel wpl3 reducer, grade wpl3 astm a420 carbon steel butt weld collar, astm a420 carbon steel wpl3 pipe fittings, astm a420 wpl3 wrought carbon steel butt weld pipe fittings dimensions, ltcs astm a420 wpl3 pipe fittings, schedule 10 carbon steel astm a420 wpl3 pipe fittings, astm a420 wpl3 straight tee traders, carbon steel wpl3 seamless pipe fitting, astm a420 wpl3 carbon steel welded pipe fittings, price of lap joint stub ends low temperature carbon steel wpl3, carbon steel wpl3 90 deg long radius elbow, astm a420 carbon steel wpl3 buttweld pipe fittings, astm a420 wpl3 carbon steel 45° short radius elbow, astm a420 wpl3 fittings supplier in india, carbon steel wpl3 butt weld fittings manufacturers, astm a420 carbon steel wpl3 buttweld fittings manufacturer in mumbai, carbon steel astm a420 grade wpl3 buttweld pipe fittings, astm a420 carbon steel wpl3 welded tee stockholder, low cost carbon steel wpl3 seamless pipe elbow, asme sa 420 carbon steel wpl3 5d elbow, ltcs wpl3 short radius elbow – sr elbow, astm a420 wpl3 buttweld fittings price list, wrought carbon steel wpl3 3d elbow stockholder, astm a420 wpl3 low temperature butt weld pipe fitting, carbon steel wpl3 bend, astm a420 wpl3 180° long & short radius elbow.
Oil and Gas
Chemical Industry
Power Plant
Food Industry
Petrochemical
Automobile
Application Industries
- Grade WPL3 Carbon Steel Pipe Fittings uses in Plumbing
- ASTM A420 WPL3 Carbon Steel Buttweld Fittings uses in Heating
- ASTM A420 WPL3 Pipe Fittings uses in Water Supply Systems
- ASTM A420 Carbon Steel WPL3 Butt weld Pipe Fittings uses in Paper & Pulp Industry
- WPL3 Low Temperature Carbon Steel Buttweld Pipe Fittings uses in General Purpose Applications
- ASME SA420 Carbon Steel WPL3 Pipe Fittings uses in Fabrication Industry
