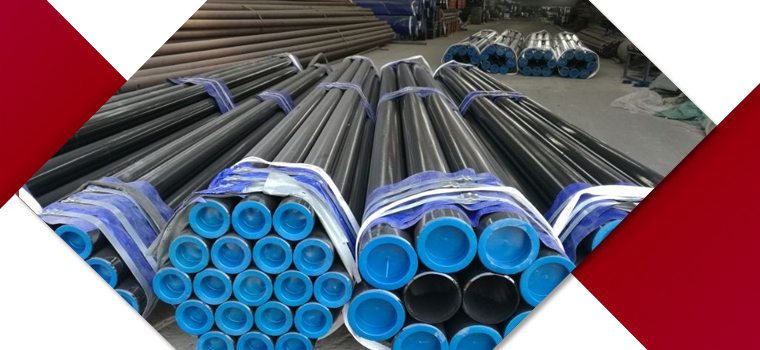

Gautam Tubes offer API 5L pipe in various specifications, designations, and dimensions. We stock a wide range of pipes that are API 5L GR B Pipe manufactured from good quality materials. These pipes are highly used in demanding and critical applications when the concern is impact strength and resistance ability. We are known for offering a superior range of pipes that are popular for embedded properties. We also make other API pipes using ferrous and non-ferrous products. The manufacturing process is performed under the norms of globally approved norms. We have a large production facility that allows us to produce API pipes in bulk quantity. Thus, we maintain a large inventory contains industrial pipes in various standard and non-standard dimensions. Moreover, we provide API pipes with tolerance limits and machining allowances for multiple applications in various industrial sectors. Our offered range of pipes has many useful features such as sturdiness, long lasting service, easy maintenance, high tensile strength, robust construction, etc.
The API (American petroleum institute) covers welded and seamless pipes. These pipes are used for carrying in the transportation systems and gas processing industries. These pipes contain the highest level of mechanical properties and chemical properties. These pipes come in different thickness and grades. These pipes have good workability in higher temperatures without any elongation and deformation. API 5L Pipe is more resistive to local and atmospheric corrosion. It also performs well in mildly corrosive environments. However, these pipes cannot corrode in the general corrosive environments. It also performs well in highly acidic environments such as nitric acids, phosphoric acids, acetic acids, and other sulfuric acids.
API 5L Spiral Welded Pipes Price List, API 5L DSAW Pipe Distributors, API 5L HSAW Pipes, API 5L Spiral Pipe, API 5L SSAW Pipe Exporter in Mumbai.
Moreover, it serves good performance in a higher concentric environment having chlorides content too. API has good operating service in adverse environments and has significant corrosion resistance rates. These can be exposed in the pitting and crevice corrosion environments. All type of standard welding operations can be applied on API pipes. However, it posses good thermal properties so it serves good performance in pressurized environments without being a leak. Due to the formability and fabricability, it can be turned into any complex design with standard machines. Thus, machining cost is lower of API 5L Pipe.
Standard Specification and Size Range of API 5L Pipe
Standard : API 5L
API 5L grade : API 5L GR B, X42, X46, X52, X56, X60, X65, X70, X80
Product Specification Level : PSL-1
API 5L Pipe Sizes : Nominal Pipe Size 1/2" to 48 " O.D. Wall Thickness - Schedule 10 through 160, STD, XS, XXS.
API 5L Pipe Thickness : SCH 40, SCH 80, SCH XS, SCH 160, SCH XXS, All Schedules
Type :Seamless / ERW / Welded / LSAW / SAW / HFW /HSAW / DSAW / SSAW
API 5L Pipe Surface Finishes : FBE Dual, Mill Varnish, Bare, 3LPE, FBE, 3LPP, Concrete Coating and Tape Wrap, Galv, Coal Tar, Oiled, single-layer/double-layer FBE, 2PE, 3PE,3PP and other anti-corrosion coatings.
API 5L Pipe Length : Single Random, Double Random & Required Length, Customized Size - 12 Meter lengths
API 5L Pipe End : Plain End, Screwed, TBeveled End, Treaded
API 5L Line Pipe
Carbon Steel API 5L Line Pipe, API 5L Carbon Steel Line Pipe, API 5L Pipeline
API 5L Seamless Pipe
Carbon Steel API 5L Seamless Pipe, API 5L High Yield Seamless Pipe
API 5L LSAW Pipe
API 5L Carbon Steel LSAW Pipes, API 5L LSAW Line Pipe,
API 5L SAW Pipe
API 5L SAW Line Pipe, API 5L Carbon Steel SAW Pipes
Chemical Composition of API 5L Steel Pipes
Grade | Chemical Composition | |||||||
C | Si | Mn | P | S | V | Nb | Ti | |
API 5L X42 Pipe | 0.16 | 0.45 | 1.65 | 0.020 | 0.010 | 0.07 | 0.05 | 0.04 |
API 5L X52 Pipe | 0.16 | 0.45 | 1.65 | 0.020 | 0.010 | 0.07 | 0.05 | 0.04 |
API 5L X60 Pipe | 0.16 | 0.45 | 1.65 | 0.020 | 0.010 | 0.08 | 0.05 | 0.04 |
API 5L X65 Pipe | 0.16 | 0.45 | 1.65 | 0.020 | 0.010 | 0.09 | 0.05 | 0.06 |
API 5L X70 Pipe | 0.17 | 0.45 | 1.75 | 0.020 | 0.010 | 0.10 | 0.05 | 0.06 |
Mechanical Properties of API 5L Pipe
Grade | Yield Strength | Tensile Strength | Yield to Tensile | Elongation |
min. (KSI) | min. (KSI) | Ratio (max) | % | |
API 5L X42 | 42 | 60 | 0.93 | 23 |
API 5L X52 | 52 | 66 | 0.93 | 21 |
API 5L X60 | 60 | 75 | 0.93 | 23 |
API 5L X65 | 65 | 77 | 0.93 | 18 |
API 5L X70 | 70 | 82 | 0.93 | 17 |
