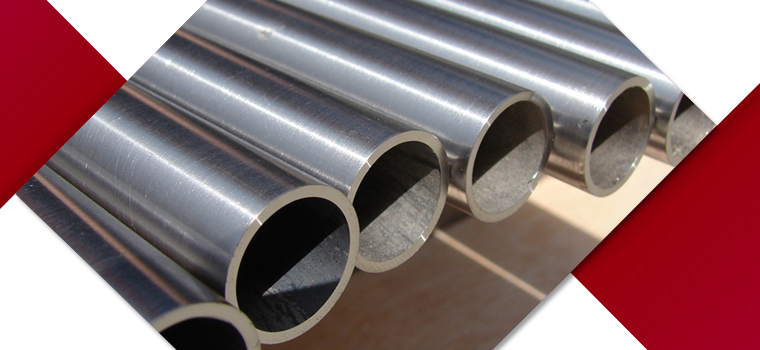

Monel 400 Pipe, Monel 400 Tube Supplier in Mumbai India

Monel 400 Tubing, Monel 400 Pipes and Tubes Manufacturer, Monel 400 Pipes, ASTM B725 Monel 400 Welded Pipe, ASTM B165 Monel 400 Seamless Pipe, Monel 2.4816 Tube, Monel 400 Tubes, UNS N06400 Pipes, Monel® Alloy 400 Pipes and Tubes Supplier in Mumbai, India.

ASME SB165 Monel 400 Seamless Tubes Best Price, Monel 400 Pipes and Tubes Supplier, DIN 2.4816 Pipes, ASTM B730 Monel 400 Welded Tubes Stockist, Monel N06400 Tubes, Monel 400 ERW Pipes, Monel 400 Pipe and Tube Exporter in India.

Gautam Tubes is a top-ranking manufacturer, supplier, and exporter of the commendable quality of Monel 400 Pipes and Tubes. These are also available in complete stock so that the urgent demand of the clients can be fulfilled easily. Taking care of the demand of every client we are providing these UNS N04400 pipes and tubes in various specifications. It thus varies in dimensions, standards, sizes, wall thickness, types, lengths, forms, ends, etc.

Monel 400 Pipes and Tubes Standard Specification Monel 400 Pipes & Tubes Equivalent Grades Monel 400 Pipes & Tubes Types Monel 400 Pipes & Tubes Chemical Composition Monel 400 Pipes and Tubes Mechanical Properties Monel® 400 Pipes & Tubes Applications

General properties-
» High tensile strength
» High yielding strength
» Good dimensional accuracy
» Fine surface finishes
» Long-lastingness
» Anti-corrosiveness
» Holds high temperature

Monel 400 is the copper and nickel-based alloy that is having a nickel of 67% and copper of 23%. It is resistant to steam and seawater at the high temperature and also to the caustic and salt solutions. Alloy 400 is a solid solution that is easily hardened through the technique of cold working. This nickel alloy is exhibiting properties like very good weldability, good corrosion resistance, and high tensile strength.

Monel 400 ERW Tubes Price List, Monel 400 Pipe & Tube Supplier, Monel 400 Pipes and Tubes Exporter in Mumbai, India.

The low corrosion rate in the fast-flowing brackish or seawater is combined with very good resistance to SCC in the freshwater and is resistance to ranges of corrosive conditions that led to its use in the non-oxidizing chloride solution and marine applications. The nickel alloy is resistance to hydrofluoric and hydrochloric acid when de-aerated. As it would be expected from the high copper content, alloy 400 is attacked rapidly by the ammonia system and nitric acid. Monel 400 is having very good mechanical properties at the sub-zero temperatures and can be used at the temperature ranging to 1000 Deg F and the melting point of it is 2370-2460 Deg C. The alloy 400 is low in strength in the annealed condition so ranges of temper may be used for increasing the strength.

The manufacturing of Monel 400 Pipes and Tubes begins with the effective use of superior quality of alloy that we have sourced from reliable market mills. No doubt the alloy used is well tested and quality checked. The use of technology and modern tools has led in the development of superior quality of pipes/tubes.

Standard Specification and Size Range of Monel 400 Pipe and Tube

Specifications : ASTM B165, B725, B730 / ASME SB165, SB725, SB730

Dimension Standard : ASTM, ASME and API

Size Range : ½"NB – 24"NB

Outer Diameter :6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness.

Type : Seamless / ERW / Welded / Fabricated / CDW

Length : Single Random, Double Random & Cut Length

Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, "U" Shape, Pan Cake Coils, Hydraulic Tube

End : Plain End, Beveled End, Treaded

Monel 400 Pipes & Tubes Equivalent Grades

UNS N04400

DIN 2.4360

JIS NW 4400

EN NiCu30Fe

BS NA 13

Types Of Monel 400 Pipe and Tube Stock

Monel 400 Seamless Pipes

Monel Alloy 400 Seamless Pipe, UNS N06400 Seamless Pipes, DIN 2.4816 Seamless Pipe

Monel 400 Seamless Tubes

Alloy UNS N06400 Seamless Tubes, Monel 2.4816 Seamless Tubes, ASTM B165 Monel 400 Seamless Tubing

Monel 400 Welded Pipes

Monel Alloy 400 Welded Pipes, Monel N06400 Welded Pipe, DIN 2.4816 Welded Pipes

Monel 400 Welded Tubes

Monel Alloy 400 Welded Tube, Monel N06400 Welded Tubes, DIN 2.4816 Welded Tubes, ASTM B730 Monel 400 Welded Tubing

Monel 400 ERW Pipes

Monel N06400 ERW Pipes, Monel Alloy 2.4816 ERW Pipes, Monel Alloy 400 ERW Pipes

Monel 400 ERW Tubes

Monel Alloy N06400 ERW Tubes, Monel 2.4816 ERW Tubes, Monel 400 ERW Tubing

Chemical Composition of Monel Grade 400 Pipes & Tubes

Grade	C	Mn	Si	S	Cu	Fe	Ni
Monel 400	0.30 max	0.30 max	0.50 max	0.024 max	28.00 – 34.00	2.50 max	63.00 min

Mechanical Properties of Monel 400 Pipes & Tubes

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.8 g/cm3	1350 °C (2460 °F)	Psi – 80,000 , MPa – 550	Psi – 35,000 , MPa – 240	40 %
