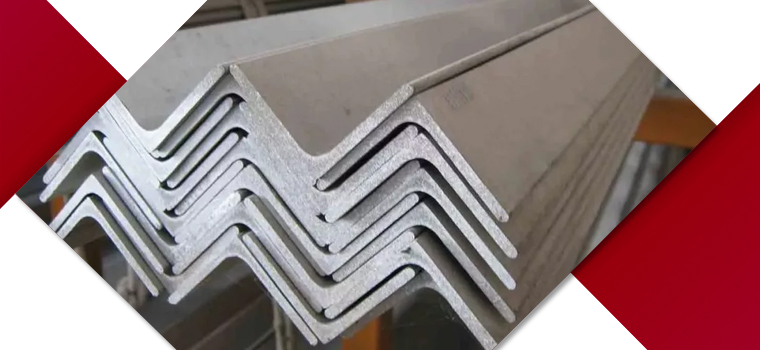

Stainless Steel 304 / 304L / 304H Angles manufacturer in Mumbai India

Stainless Steel 304 Angles, Stainless Steel 304 Angle Supplier, Stainless Steel 304H Angle Exporter, Stainless Steel 304 Angle Manufacturer, SS 304 / 304L / 304H Angle Bars, SS 1.4301 Angles, SS UNS S30400 Angles, Stainless Steel 304 Equal Angle, Steel 304 Angle Bars, SS 304L Unequal Angle, Stainless Steel 304L Angles, Stainless Steel 304H Angle Supplier in Mumbai, India.

Stainless #4 Finish Angles, Stainless Steel 304L Angle Exporter, Stainless Steel 304H Angle Manufacturer, 304 Stainless Steel Angle Stockist, SS 304H Structural Angles, Best Price of Stainless Steel 304 V Shape Angles, SS 304L Extruded Angle, SS UNS S30403 Angles, SS 304 Bar Angles, 304 / 304L / 304H Stainless Steel Angles Manufacturer in India.

Gautam Tubes is a team to reckon with the field of manufacturing and supplying high quality Stainless Steel 304 / 304L / 304H Angle. We give excellent customer service that fulfills every requirement of our customers irrespective of the size of the order. To fulfill our customers varying demands we produce these angles in a variety of dimensions and non-standard dimensions. We undertake all industrial guidelines and norms to produce a superior level of products. Our production process becomes smoother using advanced machines and equipment. This allows us to meet the superior level of quality goals with precise dimensions.

Stainless Steel 304 Angles Standard Specification Stainless Steel 304L Angle Bars Equivalent Grades SS 304H Bar Angles Types SS 304 Angles Bar Chemical Composition Stainless Steel 304L Angles Bar Mechanical Properties SS 304H Angles Bar Applications

These angles are standard chromium and nickel angles. It becomes non-magnetic when annealed; however, it turns to magnetic after cold working operations. It is the standard type of angle. 304 angles can be effortlessly welded and recommended for deep drawing or spun or forming operations because of higher ductility.

These angles have a higher resistance to oxidation. It offers maximum service temperature about 1650 deg C and continues to offer service in this temperature without scaling. The maximum temperature service 304L angle is up to 1500 deg F. Since these angles have low carbon composition it can be frequently used in as-welded conditions. Thus, SS 304L angles can offer service in severely corrosive environments except for applications that require stress relieving. These angles have good welding properties and can be welded by all standard operations. Special consideration is required to maintain protection against hot cracking. For stress relieving during critical forming, it may be followed by annealing.

304 Stainless #8 Mirror Angles Price List, Stainless Steel 304 Angle Exporter, Stainless Steel 304L Angle Supplier, Stainless Steel 304L Angle Manufacturer, Stainless Steel 304H Angle, Austenitic Stainless Steel 304L Bar Angles Distributors, 304 Stainless 2B Finish Angles, SS UNS S30409 Angles, Stainless Steel 304H Structural Hot Rolled Angles, SS 304 BA Finish Angles, ASTM A276 SS 304 Angle Bars Exporter in India.

These angles are a higher version of carbon angle making it ideal for use in applications where elevated temperatures are a concern. 304H is the austenitic grade having chromium and nickel content. Also, it has higher carbon content that increases tensile and yields strength. These angles are not recommended for use in high-pressure applications above 525 deg C, due to heat resistance properties.

Stainless Steel 304 / 304L / 304H Angle is supplied in various machining allowances and tolerance limits for multiple applications.

Standard Specification and Size Range of Stainless Steel 304 Angles

Standard :ASME, ASTM, EN, BS, GB, DIN, JIS, etc

Material : Industrial Grade Stainless Steel

Angle Size : 3/4″ THRU 8″

Angle Thickness : 1/8″ thru 5/8″

Angle : Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled

ASME SA 276 304 / 304L / 304H Stainless Steel Angles Equivalent Grades

UNS S30400 S30403 S30409

DIN 1.4301 1.4306 / 1.4307 1.4306 / 1.4301

JIS SUS 304 SUS 304L -

EN X5CrNi18-10 X2CrNi18-9 -

BS 304S31 304S11 -

Types Of Stainless Steel 304 / 304L / 304H Angles Stock

ASTM A276 304 SS Angle Bars

SS S30403 Angle Bars, Stainless Steel 304H Angle Bars, UNS S30400 Angle Bars, DIN 1.4301 Angle Bars, Stainless 304L Angle Bars

Stainless Steel 304/304L/304H L Shape Angles

ASTM A276 304 SS Angles

Stainless Steel 304L Structural Steel L Angles, SS 1.4306 L Shape Angle, UNS S30409 SS L Shape Angles, SS 304H L Shape Angles

ASTM A276 304 SS T Shape Angles

Stainless Steel 304 Stuctural Steel T Shape Angles, SUS 304L T Shape Angles, SS S30403 T Shape Angles, DIN 1.4307 T Shape Angles

Chemical Composition of Stainless Steel Grade 304 / 304L / 304H Angles

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
SS 304	0.08 max	2 max	0.75 max	0.045 max	0.030 max	18 – 20	-	8 – 11	-
SS 304L	0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18 – 20	-	8 – 13	-
SS 304H	0.10 max	2.0 max	0.75 max	0.045 max	0.030 max	18 – 20	-	8 – 10.5	-

Mechanical Properties of ASTM A276 SS 304 / 304L / 304H Angles

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1400 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	40 %

People Also Searched For

stainless steel 304 angles supplier, stainless steel 304l angle, ss 304 equal leg angles, ss 304 unequal leg angles, astm a276 304h angles price list, sus 304 hot rolled structural steel angles, aisi 304l structural t angles, ss 304 hot rolled l shape angles, astm a276 304 stainless steel angles dimensions, stainless steel 304 ba finish hot rolled angles manufacturers in india, schedule 10 stainless steel 304 2b finish angles, astm a276 304l angles supplier in india, 304h ss angles, grade 304 / 304l / 304h stainless steel angles, ss 304 mirror angles, stainless steel 304 angles stockholder, ss 304 structural steel unequal leg angles, grade 304h ss angles price, astm a276 ss 304 angles manufacturer in mumbai, ss 304 angles stockholder, asme sa 276 stainless steel 304 angle, ss 304h hot rolled angles exporter in india, price of angles stainless steel 304, ss 304 angles dealers, ss 304l structural steel bar angles, 304 stainless structural steel angles, astm a276 304 angles, ss 304 hot rolled bar angles, stainless steel 304l unequal bar angles, 304 stainless steel angles traders, stainless steel 304 bar angles, a276 stainless steel tp304 angles, buy best and high quality stainless steel 304 angles at competitive price.

Oil and Gas

Chemical Industry

Power Plant

Stainless Steel 304 / 304L / 304H Angles in Food Processing Industry

Food Industry

Petrochemical

Stainless Steel 304 / 304L / 304H Angles in Automotive

Automobile

Application Industries

Grade 304/304L/304H Stainless Steel Angles uses in Structural or Architectural applications
ASTM A276 304 Stainless Steel Angles uses in Frames
ASTM A276 304L Angles uses in Rails
SS 304H Angles uses in Automotive components
304 SS Angles uses in Building and Architecture
ASME SA276 Stainless Steel 304L Angles uses in Domestic and Office Furniture

Stainless Steel 304 / 304L / 304H Angles Manufacturer Supplier in Mumbai India
