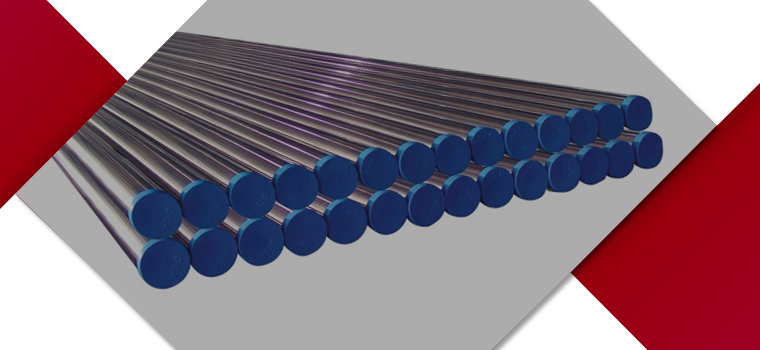

Gautam Tubes is one of the reputed producer and supplier of Inconel 625 Pipes & Tubes. We are producing these pipes and tubes in various designations and specifications. Our supplied range of Inconel pipes and tubes are used in several engineering and industrial applications. We provide these pipes and tubes with tolerance limits and machining allowances for different application in engineering applications. We also supply Inconel pipes and tubes in hard to find dimensions and non-standard dimensions. Our production process strictly runs under national and international standards. We have advanced manufacturing facility to deliver flawless products that meet end application requirements. These pipes and tubes are known for prominent features such as heat resistance, leakage proof, corrosion resistance and more.
Inconel 625 Pipes & Tubes have exceptional corrosion and oxidation resistance nickel grade. These are used because of high strength and exceptional fluid corrosion resistance. It has elevated strength and sturdiness because of expansion of niobium content. It has excellent strength and stress corrosion cracking resistance to chloride ions. These pipes and tubes have good weldability and often used to weld. These pipes and tubes have an extensive variety of severely corrosive environments and especially resistant to pitting and crevice corrosion. These pipes and tubes are ideally used in chemical processing environments such as nitric acids, acetic acids, and phosphoric acids. Also, used in chemical processing environments.
Inconel has great welding and shaping properties. These pipes and tubes can be forged or hot worked on given temperatures up to 1800 deg F to 2150 deg F. These pipes and tubes can be forged or hot worked. To control the grain size of alloy finished hot working operations are performed at down temperature ranges.
Inconel 625 ERW Tubes Price List, Inconel 625 Pipe & Tube Supplier, Inconel Alloy 625 Pipes and Tubes Exporter in Mumbai, India.
As a result of good machinability, these pipes and tubes are ideally shaped by cold working operations. These pipes and tubes have good work hardening rate readily and intermittent annealing operations. As per the end application requirement and adjusting the properties, hot and cold working operations are performed. These are also tempered and quenched following water. This is a nickel alloy can be welded by standard welding operations such as resistance and arc welding.
Standard Specification and Size Range of Inconel 625 Pipe and Tube
Specifications : ASTM B167, B517, B516 / ASME SB167, SB517, SB516
Dimension Standard : ASTM, ASME and API
Size Range : 15"NB – 150"NB
Outer Diameter : 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness.
Thickness Range : 0.3mm – 50 mm, 1MM TO 3 MM 0.028 TO 0.156 IN, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Type : Seamless / ERW / Welded
Length : Single Random, Double Random & Required Length
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
End : Plain End, Beveled End, Treaded
Inconel 625 Seamless Pipes
Inconel Alloy 625 Seamless Pipe, UNS N06625 Seamless Pipes, DIN 2.4856 Seamless Pipe
Inconel 625 Seamless Tubes
Alloy UNS N06625 Seamless Tubes, Inconel 2.4856 Seamless Tubes, ASTM B167 Inconel 625 Seamless Tubing
Inconel 625 Welded Pipes
Inconel Alloy 625 Welded Pipes, Inconel N06625 Welded Pipe, DIN 2.4856 Welded Pipes
Inconel 625 Welded Tubes
Inconel Alloy 625 Welded Tube, Inconel N06625 Welded Tubes, DIN 2.4856 Welded Tubes, ASTM B516 Inconel 625 Welded Tubing
Inconel 625 ERW Pipes
Inconel N06625 ERW Pipes, Inconel Alloy 2.4856 ERW Pipes, Inconel Alloy 625 ERW Pipes
Inconel 625 ERW Tubes
Inconel Alloy N06625 ERW Tubes, Inconel 2.4856 ERW Tubes, Inconel 625 ERW Tubing
Chemical Composition of Inconel Grade 625 Pipes & Tubes
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 |
Mechanical Properties of Inconel 625 Pipes & Tubes
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
