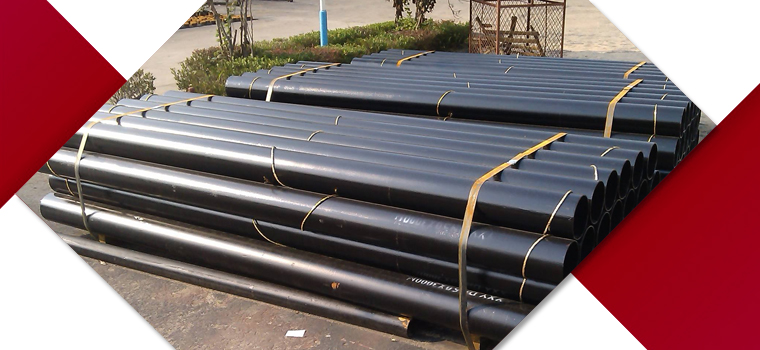

We, Gautam Tubes, are the leading manufacturer, supplier, and exporter of the commendable quality of ASTM A 333 Gr 1 Low temperature pipes & Tubes. Our offered ranges of pipes are designed and offered in different specifications that vary in types, outer diameter, lengths, wall thickness, etc. Also, it is made available to the clients at cut-made specifications as per the demands they have made from us. As our pipes and tubes are having many good features the demand for it has become higher and is found used in industrial applications like automotive, oil and gas, power plant, shipbuilding, etc. ASTM A 333 is covering average welded carbon and wall seamless and alloy steel pipes that are intended for use at the low-temperature atmosphere. Few grades of ferritic steel are included. Some product size mightn’t be available under this specification. The reason is that as heavier wall thickness is having unsympathetic effects on the low-temperature collision properties.
In ASTM A 333 Gr 1 Low temperature pipes & Tubes many good qualities are found because of which it has become an ideal selection for tough applications. Some of the good qualities offered by the product are like-
Good dimensional accuracy, Smoothness in surface finishes, Long-lastingness, Durable Pitting and oxidation resistance Holds high temperature, Rugged construction, Holds greater pressure
The manufacturing of these ASTM A333 pipes and tubes are done under the tight supervision of professionals. They are guiding the workers at all levels of the production process to make sure that the perfect quality of pipes/tubes development can be implemented. We are using the pure quality of alloy for pipes/tubes designing that is collected from reliable vendors. The use of refined technology and modern tools has allowed is in bringing out the pipes/tubes with superiority in surface finishes, high hardness, and accuracy in dimension, etc.
ASTM A333 Gr 1 Carbon Steel Tubes, ASTM A333 Gr 1 Seamless Carbon Steel Pipe Distributors, ASTM A333 Gr 1 Welded Steel Pipes Price List, ASME SA 333 Grade 1 ERW Tubes, ASTM A333 Gr 1 LTCS Pipes & Tubes Exporter in Mumbai.
The development of these low-temperature pipes/tubes is done according to the set manufacturing norms and national and international product quality standards. Additionally, we are having a team of quality checker that doesn’t allow us to deliver the very bad quality of pipes/tubes to the clients throughout the globe.
Standard Specification and Size Range of ASTM A333 Gr 1 Steel Pipe & Tubes
ASTM A333 Gr 1 Specifications : ASTM A333 / ASME SA333
ASTM A333 Gr 1 Dimensions : ASTM, ASME and API
ASTM A333 Gr 1 Size : 1/2"~24"
ASTM A333 Gr 1 Outer Diameter Size : 16" NB To 100" NB (Nominal Bore Size)
ASTM A333 Gr 1 Wall Thickness : 2.0mm-60mm
ASTM A333 Gr 1 Outer Dimensions : 19.05mm-457mm
ASTM A333 Gr 1 Schedule : SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
Type : Welded / Seamless / ERW / SAW / Spiral weld / Fabricated
Form : Round Pipe & Tube, Square Pipe & Tube, Rectangular Pipe & Tube
ASTM A333 Gr 1 Length : max 16000mm, Single Random, Double Random & Cut Length or As per customer's
ASTM A333 Gr 1 Single Random : 17′~ 24′ lengths
ASTM A333 Gr 1 Double Random : 36′~ 44′ lengths
End : Plain End, Beveled End, Treaded
ASTM A333 Gr 1 Seamless Pipe
Low Temperature Carbon Steel A333 Gr 1 Seamless Pipe, ASTM A333 Gr 1 LTCS Seamless Pipes, ASME SA333 Gr 1 Seamless Pipe
A333 Gr 1 LTCS Seamless Tubes
ASTM A333 Gr 1 Low Temperature Carbon Steel Seamless Tubes, ASTM A333 Gr 1 LTCS Seamless Tubes, ASME SA333 Gr 1 Seamless Tubing
ASTM A333 Gr 1 Welded Pipe
ASTM A333 Gr 1 Carbon Steel Low Temperature Welded Pipes, ASTM A333 Gr 1 LTCS Welded Steel Pipe, ASME SA333 Gr 1 Welded Pipe
ASTM A333 Gr 1 Welded Tube
ASTM A333 Gr 1 Low Temperature Carbon Steel Welded Tubes, ASTM A333 Gr 1 LTCS Welded Tubes, ASME SA333 Gr 1 Welded Tubing
Chemical Composition of ASTM A333 Gr 1 Carbon Steel Pipes & Tubes
ASTM A333 | C(Max) | Mn | P(Max) | S(Max) |
Grade 1 | 0.3 | 0.4-1.06 | 0.025 | 0.025 |
Mechanical Properties of ASTM A333 Gr 1 Steel Pipes & Tubing
Tensile strength(Min) | Yield Strength (Min) | ||
psi | Mpa | psi | Mpa |
55000 | 380 | 30000 | 205 |
People Also Searched For
astm a333 gr 1 tube suppliers, astm a333 grade 1 pipe equivalent, sa 333 gr 1 pipe and tubes stockholder, astm a333 grade 1 pipe supplier, astm a333 gr 1 welded low temperature carbon steel pipes & tubes dealers, pipe astm a333 grade 1, astm a333 gr 1 pipe thickness, a333 ltcs grade 1 seamless tubing at low cost, astm a333 gr 1 seamless low temperature carbon steel pipes & tubes, astm a333 low temperature carbon steel tube exporter, astm a333 gr 1 welded steel tube, astm a333 gr 1 seamless and welded carbon steel low temperature pipes and tubes traders, astm a333 gr 1 pipe suppliers, astm a333 gr 1 welded carbon steel low temperature tubing, astm a333 grade 1 pipe manufacturers, tuberia astm a333 gr 1, grade 1 astm a333 / a333m seamless and welded steel pipe for low-temperature service, astm a333 grade 1 mechanical properties, astm a333 grade 1 pressure rating, a333 ltcs gr 1 tubing, astm a333 grade 1 pipe dimensions, astm a333 gr 1 schedule 40 pipe, astm a333 gr 1 seamless carbon steel pipes & tubes stocks, astm a333 gr 1 pipe schedule, astm a333 gr 1 seamless and welded carbon steel pipe price list, astm a333 gr.1 properties, astm a333 gr 1 carbon steel tubing, asme sa 333 gr 1 welded low temperature carbon steel pipe, astm a333 grade 1 chemical composition, a333 grade 1 pipe distributors, astm a333 grade 1 material, astm a333 gr 1 welded carbon steel pipes & tubes price in india , astm a333 gr 1 pipe schedule chart, astm a333 grade 1 pipe sizes, astm a333 gr 1 wall thickness tolerance, astm a333 gr 1 for erw steel pipes, astm a333 gr 1 pipe specification, carbon steel pipe and tube astm a 333 gr 1, astm a333 gr 1 carbon steel pipe exporter, astm a333 grade 1 seamless pipe and tube, astm a333 gr 1 tube size range, astm a333 gr 1 pipe material, astm a333 ltcs pipe, astm a333 gr 1 wall thickness, astm a333 gr 1 seamless schedule 40 pipe low cost, carbon steel a333 gr 1 welded pipe, carbon steel tube astm a333 grade 1, astm a 333 gr 1 tubes supplier, astm a333 gr 1 seamless tubes exporters, astm a333 grade 1 temperature range.
Oil and Gas
Chemical Industry
Power Plant
Food Industry
Petrochemical
Automobile
Application Industries
- ASTM A333 Gr 1 Low-Temperature Pipe & Tube uses in Plumbing
- ASTM A 333 Gr 1 Pipe & Tubes uses in Heating
- ASTM A333 Gr 1 Seamless Pipe & Tube uses in Water Supply Systems
- ASTM A333 Gr 1 Welded Pipe & Tube uses in Paper & Pulp Industry
- ASTM A333 Gr 1 Welded LTCS Pipes and Tubes uses in General Purpose Applications
- ASTM A333 Gr 1 Seamless LTCS Pipes and Tubes uses in Fabrication Industry
