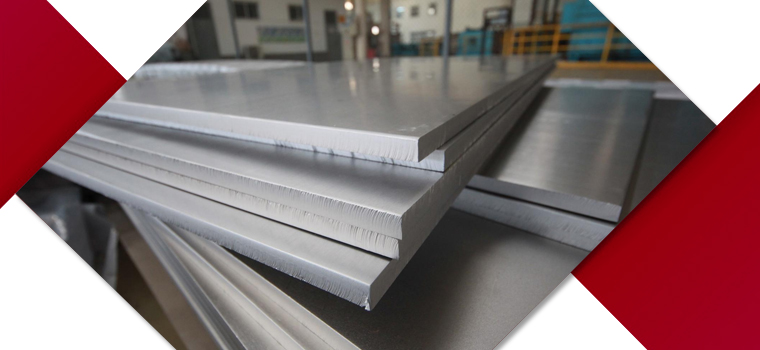

Gautam tubes is an ISO accredited form takes immense pleasure to produce all stainless steel products. We deliver Stainless Steel 304 Sheets and Plates that have prominent features ideal for fabrication industries. We manufacture sheets and plates using high grade materials using latest machines and equipment. we undertake industrial set norms and design codes to manufacture products that match end application requirements of our customers.
SS 304 has excellent corrosion resistance in a wide variety of reducing environments and exposed in mild cyclic environments. Resistance to crevice and pitting corrosion can be attained in environments that contain high levels of chlorides. SS sheets and plates can oppose stress corrosion cracking at temperatures above 60 deg C.
Stainless Steel 304 Sheets and Plates have a higher resistance to oxidation in fluctuating service up to 870 deg C and offer continuous service up to 925 deg C. However, continuous service above this temperature is not recommended if corrosion resistance is required. For cases in carbide precipitation range, 304 lower carbon versions is not recommended. Where high strength is must at temperatures between 500 deg C to 800 deg C, SS 304 sheets and plates are used. 304 stainless steel grade will retain higher corrosion resistance and properties.
Stainless Steel 304 Sheets Price List, Austenitic Stainless Steel 304 Perforated Sheets Distributors, 304 SS Coils, Stainless Steel 304 Hot Rolled Plates, SS 304 2B Finish Sheets, ASTM A240 SS 304 Sheets & Plates Exporter in India.
Fabrication of stainless steel sheets and plates are done with tools and machines dedicated to these materials. Tooling surface and workpiece must be cleaned before fabrication of sheets and plates. Special precautions are required to prevent cross contamination. stainless steel 304 grade can readily work hardens, fabrication operations include cold working may in cyclic annealing stage to raise work hardening and to prevent cracking or tearing. At the completion of manufacturing full annealing, operations are performed to lower internal stresses and optimize corrosion resistance. The hot working operations should be performed by uniform heating between 1149 deg C to 1260 deg C. the fabricated stainless steel sheets and plates are rapidly cooled to assure enhanced corrosion resistance.
Heat treatment of Stainless Steel 304 Sheets and Plates cannot be done by heat treatment operations. Solution annealing operations may be preferred.
Standard Specification and Size Range of Stainless Steel 304 Sheets & Plates
Specifications : ASTM A240 / ASME SA240
Dimensions : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
ASTM A240 304 SS Perforated Sheets
SS 304 Perforated Sheet, Stainless Steel 304 Perforated Sheets, UNS S30400 Perforated Sheets, DIN 1.4301 Perforated Sheets, Stainless 304 Perforated Sheets
ASTM A240 304 SS Chequered Plates
Stainless Steel 304 Chequered Plates, SS 1.4301 Chequered Plates, UNS S30400 Chequered Plates, SS 304 Checkered Plates
ASTM A240 304 SS Shim Sheets
Stainless Steel 304 Shim Sheets, SUS 304 Shim Sheets, SS S30400 Shim Sheets, DIN 1.4301 Shim Sheets
Chemical Composition of Stainless Steel Grade 304 Sheets & Plates
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | - | 8 – 11 | - |
Mechanical Properties of ASTM A240 SS 304 Sheets & Plates
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
People Also Searched For
stainless steel 304 sheets supplier, ss 304 plates, ss 304 coils, astm a240 304 strips price list, sus 304 hot rolled plates, aisi 304 cold rolled sheets, ss 304 hr plates, astm a240 304 stainless steel sheets dimensions, stainless steel 304 ba finish cold rolled sheet manufacturers in india, schedule 10 stainless steel 304 2b finish plates, astm a240 304 plates supplier in india, 304 ss coils, grade 304 stainless steel perforated sheets, ss 304 mirror sheets, stainless steel 304 sheets stockholder, ss 304 checkered plates, type 304 ss sheets price, astm a240 ss 304 sheets manufacturer in mumbai, ss 304 coil stockholder, asme sa 240 stainless steel 304 plates, ss 304 hot rolled plates exporter in india, price of sheets and plates stainless steel 304, ss 304 sheets dealers, ss 304 slit coils, 304 stainless steel plates, astm a240 304 sheet, ss 304 checker plates, stainless steel 304 shim sheets, 304 stainless steel perforated sheets traders, stainless steel 304 foils, stainless steel 304 sheet / plate / coil, buy best and high quality stainless steel 304 sheets at competitive price.
Oil and Gas
Chemical Industry
Power Plant
Food Industry
Petrochemical
Automobile
Application Industries
- Grade 304 Stainless Steel Sheets uses in Plumbing
- ASTM A240 304 Stainless Steel Plates uses in Heating
- ASTM A240 304 Sheets uses in Water Supply Systems
- SS 304 Coil uses in Paper & Pulp Industry
- 304 SS Plates uses in General Purpose Applications
- ASME SA240 Stainless Steel 304 Sheets uses in Fabrication Industry
