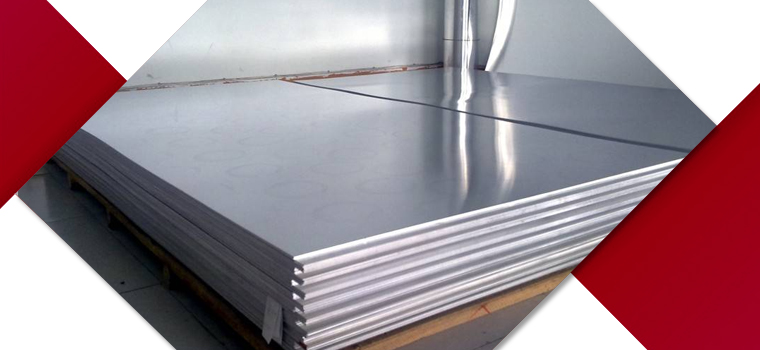

ASTM A240 316 Sheets & Plates

SS 1.4401 Sheets, 316 Stainless Steel CR Sheets, SS UNS S31600 Plates, SS 316 HR Plates, ASTM A240 Stainless Steel 316 Coils, Stainless Steel 316 Sheets, Stainless Steel 316 #8 Finish Sheets, ASTM A240 SS 316 Plates, Stainless Steel 316 Plates Supplier in Mumbai, India.

ASME SA 240 316 SS Plates, Stainless Steel 316 Shim Sheets, SS 316 Chequered Plates, SS 316 Perforated Sheets, Best Price of Stainless Steel 316 Strips, SS 316 Coils Stockist, ASTM A240 316 Stainless Steel Sheets & Plates Manufacturer in India.

Gautam Tubes stock the largest single site stainless steel sheet and plates. We are manufacturing and exporting high quality Stainless Steel 316 Sheets and Plates having embedded features such as resistance ability, durability, workability, thermal properties and more. Because of such properties, SS sheets and plates are ideally used in many engineering and industrial applications. We supply 316 sheets and plates in various designations and customized dimensions for a variety of applications.

Standard Specification and Size Range of Stainless Steel 316 Sheets & Plates

Specifications : ASTM A240 / ASME SA240

Dimensions : JIS, AISI, ASTM, GB, DIN, EN, etc

Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc

Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc

Thickness : 0.3 mm to 120 mm

Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc

Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.

ASME SA 240 316 Stainless Steel Sheets & Plates Equivalent Grades

UNS S31600
DIN 1.4401 / 1.4436
JIS SUS 316
EN X5CrNiMo17-12-2 / X3CrNiMo17-13-3
BS 316S31 / 316S33

Types Of Stainless Steel 316 Sheets & Plates Stock

Stainless Steel 316 SS Perforated Sheets

ASTM A240 316 SS Perforated Sheets

SS 316 Perforated Sheet, Stainless Steel 316 Perforated Sheets, UNS S31600 Perforated Sheets, DIN 1.4401 Perforated Sheets, Stainless 316 Perforated Sheets

Stainless Steel 316 Chequered Plates

ASTM A240 316 SS Chequered Plates

Stainless Steel 316 Chequered Plates, SS 1.4401 Chequered Plates, UNS S31600 Chequered Plates, SS 316 Checkered Plates

Stainless Steel 316 Shim Sheets

ASTM A240 316 SS Shim Sheets

Stainless Steel 316 Shim Sheets, SUS 316 Shim Sheets, SS S31600 Shim Sheets, DIN 1.4401 Shim Sheets

Chemical Composition of Stainless Steel Grade 316 Sheets & Plates

Grade C Mn Si P S Cr Mo Ni Fe
SS 316 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 11.00 - 14.00 67.845 min

Mechanical Properties of ASTM A240 SS 316 Sheets & Plates

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
People Also Searched For
Stainless Steel 316 Sheets & Plates in oil and gas industries
Oil and Gas
Stainless Steel 316 Sheets & Plates in Chemical Industry
Chemical Industry
Stainless Steel 316 Sheets & Plates in Power Plants
Power Plant
 Stainless Steel 316 Sheets & Plates in Food Processing Industry
Food Industry
Stainless Steel 316 Sheets & Plates in Petrochemical Industry
Petrochemical
Stainless Steel 316 Sheets & Plates in Automotive
Automobile

Application Industries

  • Grade 316 Stainless Steel Sheets uses in Plumbing
  • ASTM A240 316 Stainless Steel Plates uses in Heating
  • ASTM A240 316 Sheets uses in Water Supply Systems
  • SS 316 Coil uses in Paper & Pulp Industry
  • 316 SS Plates uses in General Purpose Applications
  • ASME SA240 Stainless Steel 316 Sheets uses in Fabrication Industry
