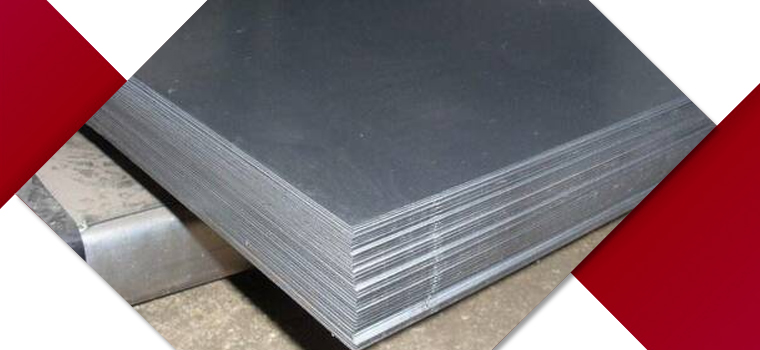

Gautam Tubes are the world’s leading manufacturer of high quality of Stainless Steel 904L Sheets and Plates. This sheets and plates are found, used in many industrial applications all across the globe due to many good properties it has to offer. Also, SS 904L sheets/plates are known as UNS N09904 sheets/plates. We in order to meet the different demands of the clients are thus offering these sheets/plates at specifications that vary in standards, surface, width, length, wall thickness, forms, end, etc. Also, we are making it available to the national and international clients at custom-built specifications as per the demands made by buyers.
Alloy 904L is actually a super-austenitic SS alloy that is developed for average to high corrosion resistance in a wider range of process atmosphere. The combination of high chromium, nickel content along with molybdenum and copper allows it to become excellently resistant to corrosion resistance. SS 904L is alloyed with 25% nickel and 4.5% of molybdenum. This alloy is providing excellent stress corrosion cracking resistance, general corrosion and pitting resistance.
The purpose of developing this alloy is to easily withstand in the environments that are containing diluted sulfuric acid. It is also offering good resistance ability to inorganic acid like hot phosphoric. This alloy is welded easily and is processed through the process named standard shop fabrications.
904L SS Coils, Stainless Steel 904L Hot Rolled Plates, Austenitic Stainless Steel 904L Perforated Sheets Distributors, SS 904L 2B Finish Sheets, Stainless Steel 904L Sheets Price List, ASTM A240 SS 904L Sheets & Plates Exporter in India.
WNR 1.4539 sheets and plates that are offered by us are having many good features because of the addition of superior quality of raw materials in an appropriate amount. The features found in it is like-
• High mechanical strength
• Good dimensional accuracy
• Smoothness in surface finishes
• Rugged construction
• General Corrosion resistance
• Pitting and crevice corrosion resistance
• High hardness
• Long serviceability
The manufacturing process of Stainless Steel 904L Sheets and Plates begins up with the effective use of superior quality of alloy. The alloy that we are using is well tested and certified. We are considering manufacturing norms and product quality standards for designing and constructing the sheets and plates.
Standard Specification and Size Range of Stainless Steel 904L Sheets & Plates
Specifications : ASTM A240 / ASME SA240
Dimensions : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
ASTM A240 904L SS Perforated Sheets
SS 904L Perforated Sheet, Stainless Steel 904L Perforated Sheets, UNS N08904 Perforated Sheets, DIN 1.4539 Perforated Sheets, Stainless 904L Perforated Sheets
ASTM A240 904L SS Chequered Plates
Stainless Steel 904L Chequered Plates, SS 1.4539 Chequered Plates, UNS N08904 Chequered Plates, SS 904L Checkered Plates
ASTM A240 904L SS Shim Sheets
Stainless Steel 904L Shim Sheets, SUS 904L Shim Sheets, SS N08904 Shim Sheets, DIN 1.4539 Shim Sheets
Chemical Composition of Stainless Steel Grade 904L Sheets & Plates
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
Mechanical Properties of ASTM A240 SS 904L Sheets & Plates
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
People Also Searched For
asme sa 240 stainless steel 904L plates, ss 904L coil stockholder, ss 904L slitting coils, grade 904L stainless steel perforated sheets, stainless steel 904L sheets supplier, stainless steel 904L sheets stockholder, price of sheets and plates stainless steel 904L, astm a240 904L sheet, astm a240 ss 904L sheets manufacturer in mumbai, ss 904L coils, aisi 904L cold rolled sheets, ss 904L checker plates, ss 904L plates, stainless steel 904L sheet, stainless steel 904L sheet / plate / coil, astm a240 904L plates supplier in india, 904L stainless steel plates, 904L ss coils, schedule 10 stainless steel 904L 2b finish plates, astm a240 904L stainless steel sheets dimensions, ss 904L plain sheets, ss 904L hr plates, stainless steel 904L ba finish cold rolled sheet manufacturers in india, sus 904L hot rolled plates, astm a240 904L strips price list, 904L stainless steel perforated sheets traders, ss 904L hot rolled plates exporter in india, stainless steel 904L foils, ss 904L slit coils, buy best and high quality stainless steel 904L sheets at competitive price, ss 904L sheets dealers, type 904L ss sheets price.
Oil and Gas
Chemical Industry
Power Plant
Food Industry
Petrochemical
Automobile
Application Industries
- Grade 904L Stainless Steel Sheets uses in Plumbing
- ASTM A240 904L Stainless Steel Plates uses in Heating
- ASTM A240 904L Sheets uses in Water Supply Systems
- SS 904L Coil uses in Paper & Pulp Industry
- 904L SS Plates uses in General Purpose Applications
- ASME SA240 Stainless Steel 904L Sheets uses in Fabrication Industry
