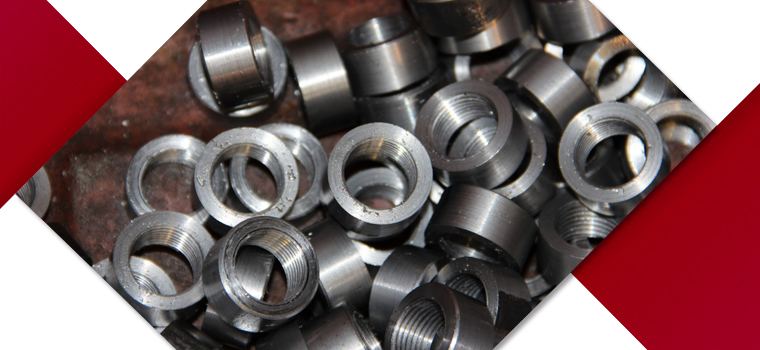

Gautam Tubes is today ranking on the top as we are extensively dealing with the large numbers of esteem patrons. We are offering them Stainless steel 316 Forged Fittings at various specifications that vary in designation, sizes, classes, forms, etc. Also, it is offered to the buyers at customized specifications. Our complete ranges of fittings offered to the clients are socket weld fittings, threaded fittings. We are distributing the forged fittings to the clients at once it is certified by the quality checker team.
Stainless steel 316 is the part of the SS family that is a group of austenitic stainless steel with excellent corrosion resistance to other alloys. The 316 SS family is the group of austenitic SS that is ideal for welding as it is having carbon content lower than other alloys for avoiding the carbide precipitations into the welding applications. The addition of molybdenum and nickel is making the alloy suitable for various applications, especially in tough applications.
The properties found in the SS 316 fittings are like-
• High mechanical strength
• Longevity
• Pitting and oxidation resistance
• General corrosion resistance
• Holds high temperature
• Holds high pressure
• Rugged construction
Stainless Steel ASTM A182 F316 Threaded Fittings Price List, ASTM A182 SS F316 Pipe Cap, Stainless Steel 316 45 Deg Forged Elbow Distributors, Stainless Steel 316 45 Deg Socketweld Elbow, 316 SS Forged Elbow, Wrought Austenitic Stainless Steel 316 Industrial Forged Fittings Exporter in India.
DESCRIPTION
The manufacturing of Stainless Steel 316 Forged Fittings at our highly operational production unit is done by using the premium quality of SS316 alloy. The alloy that we are using for the product development is acquired from the reliable market mills and is well tested and quality approved. The use of modern tools and refined technology has allowed us to add high strength to the quality of fittings so it can become liable to be used at tough industrial applications. The designing and development of fittings are done according to the well-stated manufacturing norms and product quality standards.
CONCLUSION
We are having the team of professionals that are guiding workers to fabricate the quality of forged fittings as per the clients’ expectations. Also, the availability of quality checker team efforts towards product quality checking has led us to offer excellent quality of fittings.
Standard Specification and Size Range of Stainless Steel 316 Forged Fittings
Specifications : ASTM A182 / ASME SA182
Dimensions : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
SS ASTM A182 F316 Elbow
SS 316 Forged Elbow, Stainless Steel 316 Threaded Elbow, UNS S31600 Socket Weld Elbow, DIN 1.4401 Forged Elbow, SS 316 45° Elbow, Stainless 316 90 deg Socketweld Elbow, A182 F316 180° Elbow
ASTM A182 F316 Tee
Stainless Steel 316 Threaded Tee, SS 1.4401 Forged Tee, UNS S31600 Equal Tee, SS 316 Unequal Tee, SS 316 Socketweld Tee, SS ASTM A182 F316 Unequal Tee, SS 316 Threaded Tee
SS 316 Full Coupling
Stainless Steel 316 Threaded Full Coupling, SUS 316 Socketweld Full Coupling, SS S31600 Forged Full Coupling, DIN 1.4401 Threaded Full Coupling
SS 316 Forged Half Coupling
SS 316 Threaded Half Coupling, ASTM A182 F316 Half Coupling, ANSI B16.11 SS 316 Forged Half Coupling, UNS S31600 Socketweld Half Coupling, Steel 1.4401 Threaded Half Coupling
SS 316 Forged Nipple
ASTM A182 F316 Socketweld Pipe Nipple, SS S31600 Threaded Pipe Nipple, Stainless Steel 316 Forged Swage Nipple, SS 316 Socketweld Hex Nipple, SUS 316 Threaded Pipe Nipple
Stainless Steel 316 Forged Cross
ASTM A182 F316 Equal Cross, SS 316 Unequal Cross, UNS S31600 Forged Cross, DIN 1.4401 Threaded Cross, ANSI B16.11 SS 316 Forged Cross, SS 316 Socketweld Cross
SS 316 Forged Union
ASTM A182 F316 Socketweld Union, SS S31600 Threaded Union, Stainless Steel 316 Forged Union, SS 316 Socketweld Union, SUS 316 Threaded Union
Stainless Steel 316 Bushing
ASTM A182 F316 Forged Bushing, SS 316 Threaded Bushing, UNS S31600 Forged Threaded Bushing, DIN 1.4401 Threaded Bushing, ANSI B16.11 SS 316 Hex Head Bushing, SS 316 Forged Bushing
SS 316 Forged Cap
ASTM A182 F316 Socketweld Cap, SS S31600 Threaded Cap, Stainless Steel 316 Forged Cap, SS 316 Socketweld Pipe Cap, SUS 316 Forged Pipe End Cap
Chemical Composition of Stainless Steel Grade 316 Forged Fittings
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 | 67.845 min |
Mechanical Properties of ASTM A182 SS 316 Forged Fittings
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
