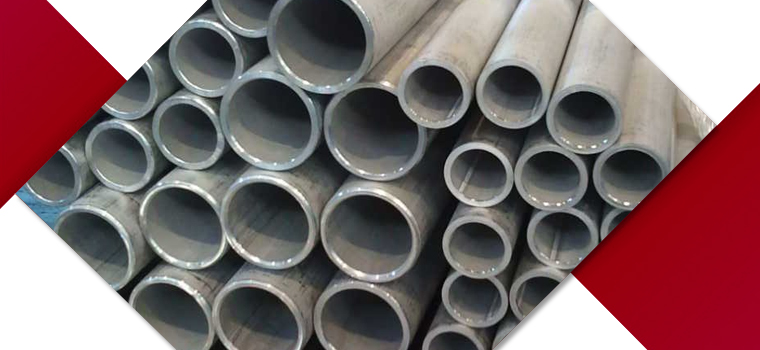

Gautam Tubes is acknowledged manufacturer, exporter as well as supplier of the Stainless Steel 316 Pipes & Tubes. We offer these tubes in variety of grades, finishes and materials, in metric as well as inch size. Stainless Steel 316 Pipes & Tubes we manufacture is generally used by chemical industry, oil refineries and in industrial constructions. Gautam Tubes is known for its good quality product and fast delivery services.
Grade 316 is a standard molybdenum containing grade, and it is second important grade after 304 in the austenitic stainless steel family. The molybdenum content offers 316 overall corrosion resistance features. Also it shows higher pitting & crevice corrosion resistance in chloride containing environments. It also has excellent forming as well as welding characters. This grade also shows amazing welding properties. Post weld annealing is not needed when welding it. 316 grades are also known as the marine grade SS but it is not resistant to sea water. In marine environment this grade exhibit surface corrosion which is visible as brown stains.
Stainless Steel 316 Pipes & Tubes also show resistance to oxidation. Continuous use of this grade is not recommended at temperature 425-860 °C. Also this grade is resistant towards carbide precipitation as well as can be used at elevated temperature. It shows high strength at the elevated temperature and can be used in structural or pressure involving application.
316 SS Capillary Tube, SS 316 Heat Exchanger Tube Distributors, Stainless Steel 316 ERW Pipe Price List, SUS 316 Tubes, AISI 316 Pipes, Stainless Steel 316 Instrumentation Tubing, SS 316 Seamless Tubing Exporter in Mumbai.
These products are not made from single dedicated methods. There are many and choice of the method depends upon the need and applications of product. Welding of 316 grades can be done by any fusion method- with or without filler metal. Hence, you can find SS 316 pipes & tubes with both chemical and mechanical features at our firm. We make sure that we manufacture the pipes and tubes as per the specifications given by our esteemed clients. We also offer this product in standard specification. Beside this, international and domestic standards are also followed. We follow all the mandatory guidelines to serve the right product to the patrons. Clients can choose them as per their application needs. We make sure that our product fit to the national and international standards and perform well.
Standard Specification and Size Range of Stainless Steel 316 Pipe and Tube
Specifications for Stainless Steel 316 Pipe ASTM A312, A358 / ASME SA312, SA358
Specifications for Stainless Steel 316 Tube : ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554
Dimension Standard : ANSI B36.19M, ANSI B36.10
Outside Diameter of SS 316 Pipe : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock
Outside Diameter of SS 316 Tube : 1/8" OD TO 2"OD 3MM OD TO 38 MM OD
Thickness Range : 0.3mm – 50 mm, 1MM TO 3 MM 0.028 TO 0.156 IN, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Seamless Stainless Steel 316 Pipe Size : 1 / 2" NB - 16" NB
Welded Stainless Steel 316 Pipe Size : 1 / 2" NB - 24" NB
EFW Stainless Steel 316 Pipe Size : 6" NB - 24" NB
Type : Seamless / ERW / Welded / Fabricated
Length : Single Random, Double Random & Required Length
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Finish : 2B, No.4, No.1, No.8 Mirror Finish, or as per customer Requirements
Delivery Condition : Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
EN 10216-5 : EN 10216 Seamless Steel 316 Tubes, EN 10216-5 1.4401 Seamless Stainless Steel Tube for pressure purposes
EN 10217-7 : EN 10217 Welded Stainless Steel 316 Tubes, Steel EN 10217-7 1.4401 Welded Tube for pressure purposes
Stainless Steel 316 Seamless Pipes
SS 316 Seamless Pipe, UNS S31600 Seamless Pipes, DIN 1.4401 Seamless Pipe, ASTM A312 TP316 Seamless Pipes
Stainless Steel 316 Seamless Tubes
SS 316 Seamless Tube, UNS S31600 Seamless Tubes, SS 1.4401 Seamless Tubes, ASTM A213 TP316 Seamless Tubing
Stainless Steel 316 Welded Pipes
SS 316 Welded Pipes, SS S31600 Welded Pipe, SS 1.4401 Welded Pipes, ASTM A312 TP316 Stainless Steel Welded Pipes
Stainless Steel 316 Welded Tubes
SS 316 Welded Tube, Stainless Steel S31600 Welded Tubes, DIN 1.4401 Welded Tubing, ASME SA 249 TP316 Stainless Steel Welded Tubes
Stainless Steel 316 ERW Pipes
Stainless Steel S31600 ERW Pipes, SS 1.4401 ERW Pipes, ASME SA312 TP316 Stainless Steel ERW Pipes, SS 316 ERW Pipes
Stainless Steel 316 ERW Tubes
SS S31600 ERW Tubes, Stainless Steel 1.4401 ERW Tubes, ASME SA312 TP316 Stainless Steel ERW Tubes, SS 316 ERW Tubing
Stainless Steel 316 EFW Pipes
UNS S31600 EFW Pipes, Stainless Steel 1.4401 EFW Pipes, ASME SA358 TP316 Stainless Steel EFW Pipes, SS 316 EFW Pipes
Chemical Composition of Stainless Steel Grade 316 Pipes & Tubes
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 | 67.845 min |
Mechanical Properties of ASME SA312 Stainless Steel 316 Pipes / SA213 Stainless Steel 316 Tubing
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
