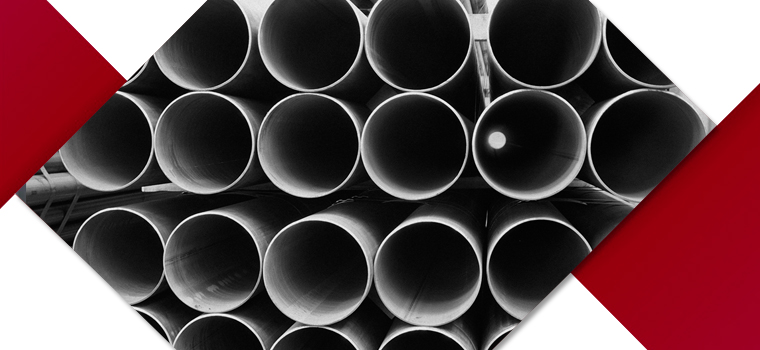

Gautam tubes is one of the best manufacturers, exporters, stockiest and suppliers of the high-quality product Stainless Steel 304H Pipes & Tubes in the market today. We are amongst the leading steel company in India. We manufacture SS 304H Pipes & Tubes with premium quality of raw materials. Our team comprises of well-experienced professionals and experts to deliver a finished product to all our clients. The main aim of our company is to provide the best customer care and satisfaction services to all our new and old clients to build trust.
SS 304H comprises of higher carbon content while making the steel more suitable for the use in applications having elevated temperature. It is a type of authentic chromium-nickel steel alloy. It is much recommended for the use in ASME pressure vessel at the working services above 525 deg C due to its heat resistant properties.
Benefits of using Stainless Steel 304H Some of the benefits of this grade are mentioned below:
SS 304H have greater long and short term creep strength, which you can only find in few alloys, SS of grade 304H comprises of higher tensile yield strength, 304H SS have higher carbon content which gives the material greater heat resistance qualities
Pipes and tubes are although similar in look but there structure, sizing and applications differ. They also differs in few factors such s metal types, strength, measurement, shape, rigidity and abilities. However, they are used interchangeable which means at the place of pipes, tubes can be used. Pipes have round shape whereas tubes come in varied shapes such as rectangular, square and round.
Stainless Steel 304H ERW Pipe, SUS 304H Tubes, SS 304H Seamless Tubing Price List, 304H SS Capillary Tube, Stainless Steel 304H Instrumentation Tubing Distributors, AISI 304H Pipes, SS 304H Heat Exchanger Tube Exporter in Mumbai.
SS 304H tubes and pipes are made up of alloy which strengthens the pipes and tubes. Its features make it best for the use in industries. The main reason due to which they are the utmost need of industries is due to its higher carbon content. Stainless Steel 304H Pipes & Tubes are also used widely in the types of equipment and utensils for handling and processing of beverages, food, and dairy products.
Standard Specification and Size Range of Stainless Steel 304H Pipe and Tube
Specifications for Stainless Steel 304H Pipe ASTM A312, A358 / ASME SA312, SA358
Specifications for Stainless Steel 304H Tube : ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554
Dimension Standard : ANSI B36.19M, ANSI B36.10
Outside Diameter of SS 304H Pipe : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock
Outside Diameter of SS 304H Tube : 1/8" OD TO 2"OD 3MM OD TO 38 MM OD
Thickness Range : 0.3mm – 50 mm, 1MM TO 3 MM 0.028 TO 0.156 IN, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Seamless Stainless Steel 304H Pipe Size : 1 / 2" NB - 16" NB
Welded Stainless Steel 304H Pipe Size : 1 / 2" NB - 24" NB
EFW Stainless Steel 304H Pipe Size : 6" NB - 24" NB
Type : Seamless / ERW / Welded / Fabricated
Length : Single Random, Double Random & Required Length
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Finish : 2B, No.4, No.1, No.8 Mirror Finish, or as per customer Requirements
Delivery Condition : Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
EN 10216-5 : EN 10216 Seamless Steel 304H Tubes, EN 10216-5 1.4301 Seamless Stainless Steel Tube for pressure purposes
EN 10217-7 : EN 10217 Welded Stainless Steel 304H Tubes, Steel EN 10217-7 1.4301 Welded Tube for pressure purposes
Stainless Steel 304H Seamless Pipes
SS 304H Seamless Pipe, UNS S30409 Seamless Pipes, DIN 1.4301 Seamless Pipe, ASTM A312 TP304H Seamless Pipes
Stainless Steel 304H Seamless Tubes
SS 304H Seamless Tube, UNS S30409 Seamless Tubes, SS 1.4301 Seamless Tubes, ASTM A213 TP304H Seamless Tubing
Stainless Steel 304H Welded Pipes
SS 304H Welded Pipes, SS S30409 Welded Pipe, SS 1.4301 Welded Pipes, ASTM A312 TP304H Stainless Steel Welded Pipes
Stainless Steel 304H Welded Tubes
SS 304H Welded Tube, Stainless Steel S30409 Welded Tubes, DIN 1.4301 Welded Tubing, ASME SA 249 TP304H Stainless Steel Welded Tubes
Stainless Steel 304H ERW Pipes
Stainless Steel S30409 ERW Pipes, SS 1.4301 ERW Pipes, ASME SA312 TP304H Stainless Steel ERW Pipes, SS 304H ERW Pipes
Stainless Steel 304H ERW Tubes
SS S30409 ERW Tubes, Stainless Steel 1.4301 ERW Tubes, ASME SA312 TP304H Stainless Steel ERW Tubes, SS 304H ERW Tubing
Stainless Steel 304H EFW Pipes
UNS S30409 EFW Pipes, Stainless Steel 1.4301 EFW Pipes, ASME SA358 TP304H Stainless Steel EFW Pipes, SS 304H EFW Pipes
Chemical Composition of Stainless Steel Grade 304H Pipes & Tubes
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | - | 8 – 10.5 | - |
Mechanical Properties of ASME SA312 Stainless Steel 304H Pipes / SA213 Stainless Steel 304H Tubing
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
People Also Searched For
304h stainless steel pipe chemical composition, stainless steel 304h pipe suppliers, stainless steel 304h heat-exchanger tubes, seamless and welded austenitic stainless steel tubing grade 304h, stainless steel 304h pipe gauge chart, stainless steel 304h pipe thickness, austenitic stainless steel 304h pipes, ss 304h pipe price, jindal stainless steel 304h welded pipes, stainless steel 304h u shaped tubes, 304h stainless steel pipe specifications, stainless steel 304h pipes diameters, 304h stainless steel pipe specifications pdf, grade 304h stainless steel pipes and tubes manufacturer in india, stainless steel 304h pipes for sale, stainless steel 304h pipe weight chart, stainless steel tube grade 304h, stainless steel 304h electropolished pipes, stainless steel 304h pipe specifications astm, stainless steel 304h boiler tubes, stainless steel 304h superheater tube, ss 304h electro polished tubes, stainless steel pipe 304h grade weight, schedule 40 stainless steel 304h pipe dimensions, 304h stainless steel tube specifications, electric fusion welded austenitic stainless steel 304h pipe, austenitic stainless steel 304h tubes, ss 304h pipe price per meter, 304h schedule 10 stainless steel, ss 304h seamless tube price, ss 304h condenser tubes, stainless steel 304h tube diameters, stainless steel pipe 304h price per kg, stainless steel 304h tubes prices, stainless steel pipe aisi 304h, stainless steel 304h pipe thickness, stainless steel 304h tubes weight chart, ss 304h finned tube, standard schedule 10s stainless steel pipe 304h, stainless steel 304h pipe price list in india, 304h ss sanitary tubing, jindal steel pipe 304h price, 304h stainless steel pipes in mumbai, stainless steel 304h tubes dimensions, stainless steel 304h pipes dimensions, ss 304h seamless pipe sizes, asme sa 213 tp 304h stainless steel tubes, jindal stainless steel 304h tubes, jindal stainless steel 304h pipes, stainless steel 304h pipes exporter, stainless steel 304h tube suppliers, electric resistance welded stainless steel 304h pipe and tube, ss 304h pipe manufacturers india, jindal ss 304h pipe weight chart, stainless steel 304h pipe weight, weight of ss 304h pipe schedule 10, stainless steel 304h tubes price list in india, stainless steel 304h tubing gauge chart, ss 304h tube sizes india, schedule 10 ss 304h pipe thickness, sizes of stainless steel 304h pipes, 304h ss guage pipes, 3 inch steel 304h pipe price, ss 304h mechanical tubing, price of stainless steel 304h pipes, asme sa 312 tp304h stainless steel pipes dealer, 304h stainless steel pipe schedule 80, 304h stainless steel pipe working pressure, 304h stainless steel pipe price list, stainless steel 304h pipe price per kg in india, stainless steel 304h pipes supplier in india.
Oil and Gas
Chemical Industry
Power Plant
Food Industry
Petrochemical
Automobile
Application Industries
- ASTM A312 TP304H Stainless Steel Pipe uses in Plumbing
- ASTM A213 TP304H Stainless Steel Tube uses in Heating
- Stainless Steel 304H Pipes & Tubes uses in Water Supply Systems
- 304H Stainless Steel Pipes & Tubes uses in Paper & Pulp Industry
- Stainless Steel 304H Welded Pipes and Tubes uses in General Purpose Applications
- SS 304H Seamless Pipes and Tubes uses in Fabrication Industry
