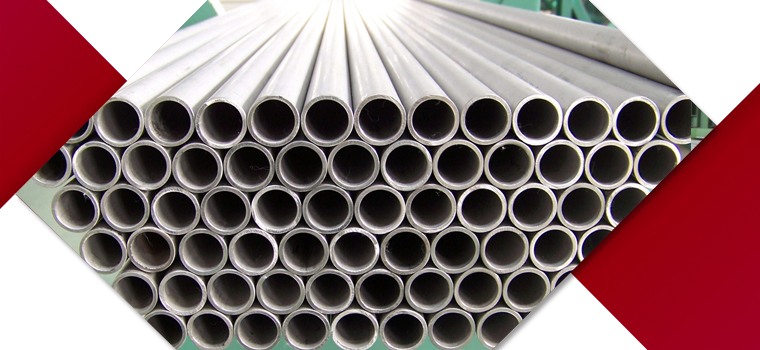

Gautam Tubes is the reliable manufacturer, supplier, and exporter of the superior quality of extensive ranges of Stainless steel 310S pipes & tubes. Our offered ranges of tubes/pipes are extensively used in the ranges of industrial applications. These ASTM A358 TP 310S SS pipes/tubes are offered to the clients at various specifications that vary in standards, dimensions, sizes, types, schedules, forms, length, and ends, etc. It is also made available to the clients at customized specifications as per the demands the buyers have made to us.
310S Stainless Steel or UNS S31008 is a low carbon version of alloy 310. This is used for fabrication ease. This alloy is used in the averagely carburizing atmosphere like that is encountered in the petrochemicals industry. However, the carbon content and grain size are meeting both 310H and 310S prerequisites. SS 310S is suitable to work with very good toughness as well as low magnetic permeability in such atmosphere like cryogenic temperature. This grade is having very good machinability and it is formed readily.
The ranges of Stainless steel 310S pipes & tubes that are offered by us have many good features to offer because of which its usability has got increased at a greater extent. Some of the good qualities are-
High tensile strength,Good dimensional accuracy, Fine surface finishes, Long serviceability, Good mechanical strength, Sturdy construction, Holds greater temperature, Anti-corrosiveness
SUS 310S Tubes, AISI 310S Pipes, Stainless Steel 310S ERW Pipe Price List, SS 310S Seamless Tubing Distributors, 310S SS Capillary Tube, Stainless Steel 310S Instrumentation Tubing, SS 310S Heat Exchanger Tube Exporter in Mumbai.
At our well operational production unit, the development of Stainless steel 310S pipes & tubes is done by using the superior quality of raw materials. The raw materials used is well tested and is quality approved. We are making the use of the latest technology and modern tools. The supplied and exported ranges of SS pipes and tubes are constructed according to the set manufacturing norms and national/international product quality standards. The quality checker team checks the product quality and thus none of our customer gets the inappropriate products for desired applications.
Standard Specification and Size Range of Stainless Steel 310S Pipe and Tube
Specifications for Stainless Steel 310S Pipe ASTM A312, A358 / ASME SA312, SA358
Specifications for Stainless Steel 310S Tube : ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554
Dimension Standard : ANSI B36.19M, ANSI B36.10
Outside Diameter of SS 310S Pipe : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock
Outside Diameter of SS 310S Tube : 1/8" OD TO 2"OD 3MM OD TO 38 MM OD
Thickness Range : 0.3mm – 50 mm, 1MM TO 3 MM 0.028 TO 0.156 IN, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Seamless Stainless Steel 310S Pipe Size : 1 / 2" NB - 16" NB
Welded Stainless Steel 310S Pipe : 1 / 2" NB - 24" NB
EFW Stainless Steel 310S Pipe Size : 6" NB - 24" NB
Type : Seamless / ERW / Welded / Fabricated
Length : Single Random, Double Random & Required Length
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Finish : 2B, No.4, No.1, No.8 Mirror Finish, or as per customer Requirements
Delivery Condition : Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
EN 10216-5 : EN 10216 Seamless Steel 310S Tubes, EN 10216-5 1.4845 Seamless Stainless Steel Tube for pressure purposes
EN 10217-7 : EN 10217 Welded Stainless Steel 310S Tubes, Steel EN 10217-71.4845 Welded Tube for pressure purposes
Stainless Steel 310S Seamless Pipes
SS 310S Seamless Pipe, UNS S31008 Seamless Pipes, DIN 1.4845 Seamless Pipe, ASTM A312 TP310S Seamless Pipes
Stainless Steel 310S Seamless Tubes
SS 310S Seamless Tube, UNS S31008 Seamless Tubes, SS 1.4845 Seamless Tubes, ASTM A213 TP310S Seamless Tubing
Stainless Steel 310S Welded Pipes
SS 310S Welded Pipes, SS S31008 Welded Pipe, SS 1.4845 Welded Pipes, ASTM A312 TP310S Stainless Steel Welded Pipes
Stainless Steel 310S Welded Tubes
SS 310S Welded Tube, Stainless Steel S31008 Welded Tubes, DIN 1.4845 Welded Tubing, ASME SA 249 TP310S Stainless Steel Welded Tubes
Stainless Steel 310S ERW Pipes
Stainless Steel S31008 ERW Pipes, SS 1.4845 ERW Pipes, ASME SA312 TP310S Stainless Steel ERW Pipes, SS 310S ERW Pipes
Stainless Steel 310S ERW Tubes
SS S31008 ERW Tubes, Stainless Steel 1.4845 ERW Tubes, ASME SA312 TP310S Stainless Steel ERW Tubes, SS 310S ERW Tubing
Stainless Steel 310S EFW Pipes
UNS S31008 EFW Pipes, Stainless Steel 1.4845 EFW Pipes, ASME SA358 TP310S Stainless Steel EFW Pipes, SS 310S EFW Pipes
Chemical Composition of Stainless Steel Grade 310S Pipes & Tubes
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
SS 310S | 0.08 max | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 - 26.00 | 0.75 max | 19.00 - 21.00 | 53.095 min |
Mechanical Properties of ASME SA312 Stainless Steel 310S Pipes / SA213 Stainless Steel 310S Tubing
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
People Also Searched For
sizes of stainless steel 310s pipes, stainless steel 310s boiler tubes, stainless steel 310s pipe gauge chart, austenitic stainless steel 310s pipes, stainless steel 310s pipe specifications astm, jindal stainless steel 310s pipes, electric resistance welded stainless steel 310s pipe and tube, jindal stainless steel 310s tubes, stainless steel 310s pipe price per kg in india, ss 310s mechanical tubing, 310s stainless steel pipe schedule 80, schedule 10 ss 310s pipe thickness, electric-fusion-welded austenitic stainless steel 310s pipe, stainless steel 310s tubing gauge chart, 310s schedule 10 stainless steel, stainless steel 310s superheater tube, 310s stainless steel pipes in mumbai, stainless steel 310s tubes weight chart, austenitic stainless steel 310s tubes, stainless steel 310s tube diameters, stainless steel 310s pipes diameters, ss 310s tube sizes india, stainless steel pipe aisi 310s, stainless steel 310s pipes dimensions, ss 310s seamless tube price, ss 310s pipe price per meter, jindal stainless steel 310s welded pipes, ss 310s pipe price, 310s stainless steel pipe price list, asme sa 312 tp310s stainless steel pipes dealer, schedule 40 stainless steel 310s pipe dimensions, stainless steel 310s pipe weight chart, 3 inch steel 310s pipe price, stainless steel pipe 310s price per kg, 310s stainless steel pipe specifications pdf, stainless steel 310s u shaped tubes, 310s stainless steel pipe working pressure, seamless and welded austenitic stainless steel tubing grade 310s, grade 310s stainless steel pipes and tubes manufacturer in india, price of stainless steel 310s pipes, stainless steel 310s pipes for sale, stainless steel 310s tubes dimensions, 310s stainless steel pipe chemical composition, stainless steel 310s heat-exchanger tubes, 310s stainless steel tube specifications, ss 310s electro polished tubes, stainless steel 310s tubes prices, stainless steel 310s electropolished pipes, stainless steel tube grade 310s, ss 310s seamless pipe sizes, jindal ss 310s pipe weight chart, stainless steel 310s tube suppliers, stainless steel 310s pipe thickness, 310s ss guage pipes, standard schedule 10s stainless steel pipe 310s, stainless steel 310s pipe price list in india, ss 310s finned tube, stainless steel 310s pipes supplier in india, stainless steel 310s pipe weight, stainless steel 310s pipe thickness, 310s stainless steel pipe specifications, stainless steel pipe 310s grade weight, ss 310s condenser tubes , weight of ss 310s pipe schedule 10, jindal steel pipe 310s price, stainless steel 310s tubes price list in india, stainless steel 310s pipe suppliers, stainless steel 310s pipes exporter, asme sa 213 tp 310s stainless steel tubes, 310s ss sanitary tubing, ss 310s pipe manufacturers india.
Oil and Gas
Chemical Industry
Power Plant
Food Industry
Petrochemical
Automobile
Application Industries
- ASTM A312 TP310S Stainless Steel Pipe uses in Plumbing
- ASTM A213 TP310S Stainless Steel Tube uses in Heating
- Stainless Steel 310S Pipes & Tubes uses in Water Supply Systems
- 310S Stainless Steel Pipes & Tubes uses in Paper & Pulp Industry
- Stainless Steel 310S Welded Pipes and Tubes uses in General Purpose Applications
- SS 310S Seamless Pipes and Tubes uses in Fabrication Industry
