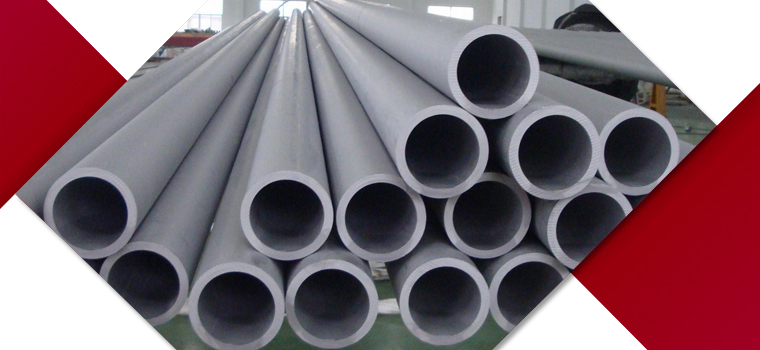

Gautam Tubes produce all stainless steel products that are known for their quality in the market. We deal in all SS products including Stainless Steel 310H Pipes & Tubes. We are leading producer and supplier of high quality SS 310H pipes and tubes. We use only good quality of SS 310 H for manufacturing to meets all application needs of customers. Stainless Steel 310H Pipes & Tubes offer outstanding resistance to oxidation up to 2000 deg F. These are low grade steel pipes and tubes prevent sensitization and embrittlement. These tubes and pipes offer moderate strength and hardness at cryogenic temperatures below -450 deg F. These pipes and tubes are excellent heat resistance alloy. Moreover, it offers superior corrosion resistance and commonly applied in thermal treatment and power reactors applications.
These pipes and tubes are used in temperature up to 1150 deg C and offer continuous operations in the same. Also, offer service in fluctuating temperatures up to 1035 deg C. S4tainless steel comprising of the low amount of carbon content. Stainless steel is made from chromium and nickel content that makes it widely resistive to oxidation. The nominal carbon composition makes it less inclined to embrittlement and sensitization while used in applications.
The higher amount of nickel and chromium makes it ideal for the operation in reducing sulfur. These are highly used in carburizing environments. SS pipes and tubes are preferred for rapid cooling as it may be affected by heatstroke. These are commonly used in the cryogenic applications for lower magnetic properties and stiffness. Like other 300 series stainless steel pipes and tubes, these cannot be hardened via heat treatments. Pipes and tubes get their toughness by cold working operations.
310H SS Capillary Tube, SS 310H Heat Exchanger Tube, Stainless Steel 310H ERW Pipe Price List, SUS 310H Tubes, AISI 310H Pipes, Stainless Steel 310H Instrumentation Tubing, SS 310H Seamless Tubing Distributors Exporter in Mumbai.
It is superiorly resistant to sulfidation. These pipes and tubes are forged at temperatures up to 975 deg C to 1175 deg C. The heavy operations are performed up to 1050 deg C and light finish is done to furnish dimensions. Annealing operations are recommended to remove stress from the forming operations. However, pipes and tubes can be cold worked by standard operations and methods. Stainless steel 310 H is solution annealed through heating from 1040 deg C to 1065 deg C.
Standard Specification and Size Range of Stainless Steel 310H Pipe and Tube
Specifications for Stainless Steel 310H Pipe ASTM A312, A358 / ASME SA312, SA358
Specifications for Stainless Steel 310H Tube : ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554
Dimension Standard : ANSI B36.19M, ANSI B36.10
Outside Diameter of SS 310H Pipe : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock
Outside Diameter of SS 310H Tube : 1/8" OD TO 2"OD 3MM OD TO 38 MM OD
Thickness Range : 0.3mm – 50 mm, 1MM TO 3 MM 0.028 TO 0.156 IN, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Seamless Stainless Steel 310H Pipe Size : 1 / 2" NB - 16" NB
Welded Stainless Steel 310H Pipe Size : 1 / 2" NB - 24" NB
EFW Stainless Steel 310H Pipe Size : 6" NB - 24" NB
Type : Seamless / ERW / Welded / Fabricated
Length : Single Random, Double Random & Required Length
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Finish : 2B, No.4, No.1, No.8 Mirror Finish, or as per customer Requirements
Delivery Condition : Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
EN 10216-5 : EN 10216 Seamless Steel 310H Tubes, EN 10216-5 1.4845 Seamless Stainless Steel Tube for pressure purposes
EN 10217-7 : EN 10217 Welded Stainless Steel 310H Tubes, Steel EN 10217-7 1.4845 Welded Tube for pressure purposes
Stainless Steel 310H Seamless Pipes
SS 310H Seamless Pipe, UNS S31009 Seamless Pipes, DIN 1.4845 Seamless Pipe, ASTM A312 TP310H Seamless Pipes
Stainless Steel 310H Seamless Tubes
SS 310H Seamless Tube, UNS S31009 Seamless Tubes, SS 1.4845 Seamless Tubes, ASTM A213 TP310H Seamless Tubing
Stainless Steel 310H Welded Pipes
SS 310H Welded Pipes, SS S31009 Welded Pipe, SS 1.4845 Welded Pipes, ASTM A312 TP310H Stainless Steel Welded Pipes
Stainless Steel 310H Welded Tubes
SS 310H Welded Tube, Stainless Steel S31009 Welded Tubes, DIN 1.4845 Welded Tubing, ASME SA 249 TP310H Stainless Steel Welded Tubes
Stainless Steel 310H ERW Pipes
Stainless Steel S31009 ERW Pipes, SS 1.4845 ERW Pipes, ASME SA312 TP310H Stainless Steel ERW Pipes, SS 310H ERW Pipes
Stainless Steel 310H ERW Tubes
SS S31009 ERW Tubes, Stainless Steel 1.4845 ERW Tubes, ASME SA312 TP310H Stainless Steel ERW Tubes, SS 310H ERW Tubing
Stainless Steel 310H EFW Pipes
UNS S31009 EFW Pipes, Stainless Steel 1.4845 EFW Pipes, ASME SA358 TP310H Stainless Steel EFW Pipes, SS 310H EFW Pipes
Chemical Composition of Stainless Steel Grade 310H Pipes & Tubes
Grade | C | Mn | Si | P | S | Cr | Ni | Fe |
SS 310H | 0.04 – 0.10 | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 - 26.00 | 19.00 - 21.00 | 53.885 min |
Mechanical Properties of ASME SA312 Stainless Steel 310H Pipes / SA213 Stainless Steel 310H Tubing
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
People Also Searched For
sizes of stainless steel 310h pipes, stainless steel 310h boiler tubes, stainless steel 310h pipe gauge chart, austenitic stainless steel 310h pipes, stainless steel 310h pipe specifications astm, jindal stainless steel 310h pipes, electric resistance welded stainless steel 310h pipe and tube, jindal stainless steel 310h tubes, stainless steel 310h pipe price per kg in india, ss 310h mechanical tubing, 310h stainless steel pipe schedule 80, schedule 10 ss 310h pipe thickness, electric-fusion-welded austenitic stainless steel 310h pipe, stainless steel 310h tubing gauge chart, 310h schedule 10 stainless steel, stainless steel 310h superheater tube, 310h stainless steel pipes in mumbai, stainless steel 310h tubes weight chart, austenitic stainless steel 310h tubes, stainless steel 310h tube diameters, stainless steel 310h pipes diameters, ss 310h tube sizes india, stainless steel pipe aisi 310h, stainless steel 310h pipes dimensions, ss 310h seamless tube price, ss 310h pipe price per meter, jindal stainless steel 310h welded pipes, ss 310h pipe price, 310h stainless steel pipe price list, asme sa 312 tp310h stainless steel pipes dealer, schedule 40 stainless steel 310h pipe dimensions, stainless steel 310h pipe weight chart, 3 inch steel 310h pipe price, stainless steel pipe 310h price per kg, 310h stainless steel pipe specifications pdf, stainless steel 310h u shaped tubes, 310h stainless steel pipe working pressure, seamless and welded austenitic stainless steel tubing grade 310h, grade 310h stainless steel pipes and tubes manufacturer in india, price of stainless steel 310h pipes, stainless steel 310h pipes for sale, stainless steel 310h tubes dimensions, 310h stainless steel pipe chemical composition, stainless steel 310h heat-exchanger tubes, 310h stainless steel tube specifications, ss 310h electro polished tubes, stainless steel 310h tubes prices, stainless steel 310h electropolished pipes, stainless steel tube grade 310h, ss 310h seamless pipe sizes, jindal ss 310h pipe weight chart, stainless steel 310h tube suppliers, stainless steel 310h pipe thickness, 310h ss guage pipes, standard schedule 10s stainless steel pipe 310h, stainless steel 310h pipe price list in india, ss 310h finned tube, stainless steel 310h pipes supplier in india, stainless steel 310h pipe weight, stainless steel 310h pipe thickness, 310h stainless steel pipe specifications, stainless steel pipe 310h grade weight, ss 310h condenser tubes , weight of ss 310h pipe schedule 10, jindal steel pipe 310h price, stainless steel 310h tubes price list in india, stainless steel 310h pipe suppliers, stainless steel 310h pipes exporter, asme sa 213 tp 310h stainless steel tubes, 310h ss sanitary tubing, ss 310h pipe manufacturers india.
Oil and Gas
Chemical Industry
Power Plant
Food Industry
Petrochemical
Automobile
Application Industries
- ASTM A312 TP310H Stainless Steel Pipe uses in Plumbing
- ASTM A213 TP310H Stainless Steel Tube uses in Heating
- Stainless Steel 310H Pipes & Tubes uses in Water Supply Systems
- 310H Stainless Steel Pipes & Tubes uses in Paper & Pulp Industry
- Stainless Steel 310H Welded Pipes and Tubes uses in General Purpose Applications
- SS 310H Seamless Pipes and Tubes uses in Fabrication Industry
