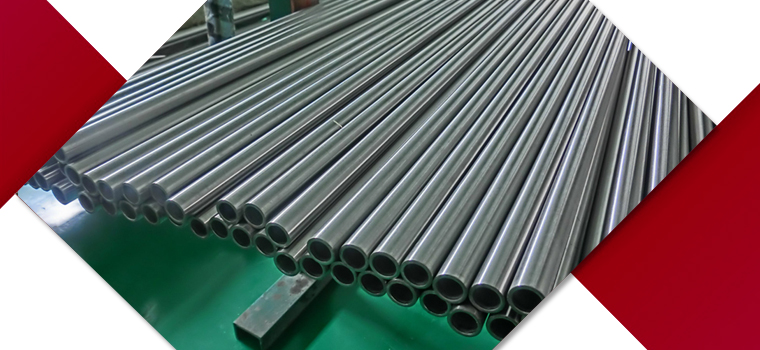

As the leading manufacturer, supplier and exporter of a wide variety of the steel pipes & tubes, Gautam Tubes are busy in developing Stainless Steel 317 Pipes & Tubes. We are developing the SS 317 Pipes & Tubes according to the specifications provided by our customers. We are also offering the same in different specializations such as dimensions, shape, sizes, and wall thickness. Procurement of the same is done by following all the general guidelines that are given by the experts. The manufacturing is also performed under the strict supervision of the experts.
We manufacture Stainless Steel 317 Pipes & Tubes by the stainless steel alloy which specialized in the 300 series stainless steel. The austenitic alloy has the maximum number of chromium and nickel contents. Due to the controlled carbon content which is present in the alloy i.e. 0.10% stainless steel 317 UNS S31700 provides mechanical and chemical strength to the product. This is provided at a particular temperature of 1500 degree F.
Stainless steel 317 is molybdenum-containing low carbon austenitic grade alloy that has addition of increased chromium, nickel, and molybdenum with low carbon content. This content helps in the better corrosion resistance and increased resistance to chemical attack for sulfurous and related acids. It is non-magnetic in the annealed condition but become magnetic if gone through welding. The SS 317 Pipes & tubes are available in the welded, round, square, and rectangular shape as per the client’s willingness. We have a lot of experience of manufacturing the 317 SS Pipes & Tubes that are preferred by the industries.
Stainless Steel 317 ERW Pipe Price List, SUS 317 Tubes, SS 317 Heat Exchanger Tube, SS 317 Seamless Tubing, AISI 317 Pipes, 317 SS Capillary Tube Distributors, Stainless Steel 317 Instrumentation Tubing Exporter in Mumbai.
The 317 SS Pipes & tubes also contain many different properties as per the alloy used. Mainly the UNS S31700 is having strong tensile strength, good toughness, corrosion resistance features, excellent weldability, and stability in the aggressive temperatures. That is the reason for the high-temperature usage in the core industries. Various industries use in the pulp and paper, petrochemical, pharmaceuticals, and many others. Pipes & tubes of stainless steel 317 are manufactured by the super quality of the alloy. Because this we are considered as the best Stainless Steel 317 Pipes & Tubes among all the developers.
Standard Specification and Size Range of Stainless Steel 317 Pipe and Tube
Specifications for Stainless Steel 317 Pipe ASTM A312, A358 / ASME SA312, SA358
Specifications for Stainless Steel 317 Tube : ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554
Dimension Standard : ANSI B36.19M, ANSI B36.10
Outside Diameter of SS 317 Pipe : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock
Outside Diameter of SS 317 Tube : 1/8" OD TO 2"OD 3MM OD TO 38 MM OD
Thickness Range : 0.3mm – 50 mm, 1MM TO 3 MM 0.028 TO 0.156 IN, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Seamless Stainless Steel 317 Pipe Size : 1 / 2" NB - 16" NB
Welded Stainless Steel 317 Pipe Size : 1 / 2" NB - 16" NB
EFW Stainless Steel 317 Pipe Size : 6" NB - 24" NB
Type : Seamless / ERW / Welded / Fabricated
Length : Single Random, Double Random & Required Length
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Finish : 2B, No.4, No.1, No.8 Mirror Finish, or as per customer Requirements
Delivery Condition : Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
EN 10216-5 : EN 10216 Seamless Steel 317 Tubes, EN 10216-5 1.4449 Seamless Stainless Steel Tube for pressure purposes
EN 10217-7 : EN 10217 Welded Stainless Steel 317 Tubes, Steel EN 10217-7 1.4449 Welded Tube for pressure purposes
Stainless Steel 317 Seamless Pipes
SS 317 Seamless Pipe, UNS S31700 Seamless Pipes, DIN 1.4449 Seamless Pipe, ASTM A312 TP317 Seamless Pipes
Stainless 317 Seamless Tubes
SS 317 Seamless Tube, UNS S31700 Seamless Tubes, SS 1.4449 Seamless Tubes, ASTM A213 TP317 Seamless Tubing
Stainless Steel 317 Welded Pipes
SS 317 Welded Pipes, SS S31700 Welded Pipe, SS 1.4449 Welded Pipes, ASTM A312 TP317 Stainless Steel Welded Pipes
Stainless Steel 317 Welded Tubes
SS 317 Welded Tube, Stainless Steel S31700 Welded Tubes, DIN 1.4449 Welded Tubing, ASME SA 249 TP317 Stainless Steel Welded Tubes
Stainless Steel 317 ERW Pipes
Stainless Steel S31700 ERW Pipes, SS 1.4449 ERW Pipes, ASME SA312 TP317 Stainless Steel ERW Pipes, SS 317 ERW Pipes
Stainless Steel 317 ERW Tubes
SS S31700 ERW Tubes, Stainless Steel 1.4449 ERW Tubes, ASME SA312 TP317 Stainless Steel ERW Tubes, SS 317 ERW Tubing
Stainless Steel 317 EFW Pipes
UNS S31700 EFW Pipes, Stainless Steel 1.4449 EFW Pipes, ASME SA358 TP317 Stainless Steel EFW Pipes, SS 317 EFW Pipes
Chemical Composition of Stainless Steel Grade 317 Pipes & Tubes
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.845 min |
Mechanical Properties of ASME SA312 Stainless Steel 317 Pipes / SA213 Stainless Steel 317 Tubing
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
People Also Searched For
317 stainless steel pipe working pressure, stainless steel 317 pipes for sale, 317 ss sanitary tubing, stainless steel pipe 317 grade weight, ss 317 pipe price, stainless steel pipe 317 price per kg manufacturers india, stainless steel 317 tubing gauge chart, austenitic stainless steel 317 tubes, stainless steel 317 pipe weight, 317 ss guage pipes, stainless steel 317 pipes diameters, ss 317 finned tube, asme sa 312 tp317 stainless steel pipes dealer, schedule 10 ss 317 pipe thickness, jindal steel pipe 317 price, 317 schedule 10 stainless steel, 317 stainless steel tube specifications, ss 317 tube sizes india, jindal stainless steel 317 pipes, schedule 40 stainless steel 317 pipe dimensions, standard schedule 10s stainless steel pipe 317, ss 317 condenser tubes , ss 317 pipe, weight of ss 317 pipe schedule 10, stainless steel 317 tubes dimensions, sizes of stainless steel 317 pipes, stainless steel 317 boiler tubes, stainless steel 317 tube suppliers, 317 stainless steel pipe schedule 80, price of stainless steel 317 pipes, stainless steel 317 pipe price per kg in india, stainless steel 317 tubes price list in india, stainless steel 317 pipe price list in india, stainless steel 317 pipes dimensions, ss 317 seamless tube price, jindal ss 317 pipe weight chart, stainless steel 317 tubes weight chart, ss 317 pipe price per meter, 3 inch steel 317 pipe price, ss 317 mechanical tubing, stainless steel 317 tube diameters, stainless steel 317 pipe weight chart, ss 317 electro polished tubes, jindal stainless steel 317 tubes, stainless steel 317 pipes exporter, electric-fusion-welded austenitic stainless steel 317 pipe, stainless steel pipe aisi 317, stainless steel 317 pipe thickness, stainless steel 317 pipe thickness, electric resistance welded stainless steel 317 pipe and tube, austenitic stainless steel 317 pipes, stainless steel 317 electropolished pipes, stainless steel 317 pipe gauge chart, stainless steel 317 tubes prices, stainless steel 317 u shaped tubes, 317 stainless steel pipe specifications pdf, 317 stainless steel pipe chemical composition, 317 stainless steel pipe specifications, stainless steel 317 pipe specifications astm, jindal stainless steel 317 welded pipes, stainless steel 317 heat-exchanger tubes, 317 stainless steel pipes in mumbai, stainless steel tube grade 317, stainless steel 317 pipes supplier in india, ss 317 seamless pipe sizes, grade 317 stainless steel pipes and tubes manufacturer in india, asme sa 213 tp 317 stainless steel tubes, stainless steel 317 pipe suppliers, seamless and welded austenitic stainless steel tubing grade 317, 317 stainless steel pipe price list, stainless steel 317 superheater tube.
Oil and Gas
Chemical Industry
Power Plant
Food Industry
Petrochemical
Automobile
Application Industries
- ASTM A312 TP317 Stainless Steel Pipe uses in Plumbing
- ASTM A213 TP317 Stainless Steel Tube uses in Heating
- Stainless Steel 317 Pipes & Tubes uses in Water Supply Systems
- 317 Stainless Steel Pipes & Tubes uses in Paper & Pulp Industry
- Stainless Steel 317 Welded Pipes and Tubes uses in General Purpose Applications
- SS 317 Seamless Pipes and Tubes uses in Fabrication Industry
