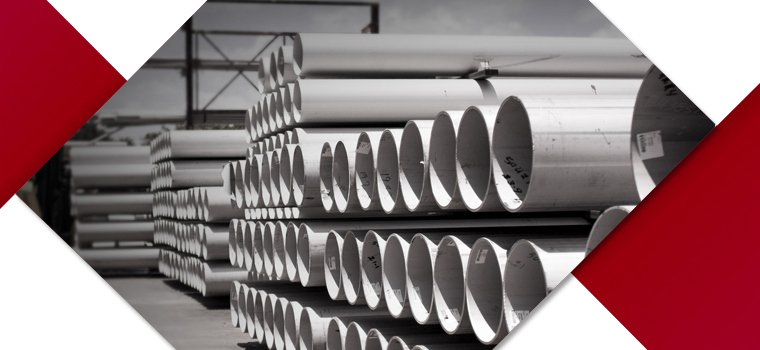

Gautam Tubes is a well-known manufacturer, exporter, and supplier of the Stainless steel product. We manufacture Stainless Steel 410 Pipes & Tubes in a variety of size, shapes, and finishes. We make use of the raw material of the best quality in order to manufacture these pipes and tubes. We offer these pipes and tubes to worldwide customers. We also make tubes and pipes in customized specifications. We have a team of professionals who make precise SS product to meet our customer’s need.
Grade 410 is a martensitic SS also known as general purpose SS which contain chromium 11.5%. This grade shows good corrosion resistance feature because of the presence of the chromium. For further enhancing the corrosion resistance of the grade 410 different processes are involved like hardening, polishing, and tempering. Tempering and quenching can harden this grade. This grade is used mostly in the application involving heat resistance, high strength, and mild corrosion. Martensitic SS are fabricated utilizing techniques where final heat treatment is required. This grade, when compared to austenitic grade, shows less corrosion resistance. Their working temperature is affected by the loss of strength at elevated temperature because of the over tempering as well as the loss of ductility.
Applications in which Stainless Steel 410 Pipes & Tubes are generally used are pipelines, surgical instrument, automotive parts, etc. SS 410 is resistant to steam; hot gases, alkalis, and dry air, freshwater, etc. smooth surface of this grade is responsible for offering good performance.
410 SS Capillary Tube, AISI 410 Pipes, SS 410 Seamless Tubing, Stainless Steel 410 Instrumentation Tubing Distributors, Stainless Steel 410 ERW Pipe Price List, SUS 410 Tubes, SS 410 Heat Exchanger Tube Exporter in Mumbai.
Also, this grade shows good scaling resistance up to 650°C. However, the mechanical property of this grade decreases at a temperature between 400-580°C. Now, about heat treatment, this grade can be annealed at temperature 815-900°C followed by furnace cooling and air cooling. Annealing can be carried out at 650-760°C and then air-cooled.
This was all about Stainless Steel 410 Pipes & Tubes. Gautam Tubes is dedicated to offering the same with properties given above. We make sure that our tubes and pipes work well and do not get damaged easily. We thus, keep our customer satisfied with our range of product.
Standard Specification and Size Range of Stainless Steel 410 Pipe and Tube
Specifications for Stainless Steel 410 Pipe ASTM A312, A358 / ASME SA312, SA358
Specifications for Stainless Steel 410 Tube : ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554
Dimension Standard : ANSI B36.19M, ANSI B36.10
Outside Diameter of SS 410 Pipe : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock
Outside Diameter of SS 410 Tube : 1/8" OD TO 2"OD 3MM OD TO 38 MM OD
Thickness Range : 0.3mm – 50 mm, 1MM TO 3 MM 0.028 TO 0.156 IN, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Seamless Stainless Steel 410 Pipe Size : 1 / 2" NB - 16" NB
Welded Stainless Steel 410 Pipe Size : 1 / 2" NB - 16" NB
EFW Stainless Steel 410 Pipe Size : 6" NB - 24" NB
Type : Seamless / ERW / Welded / Fabricated
Length : Single Random, Double Random & Required Length
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Finish : 2B, No.4, No.1, No.8 Mirror Finish, or as per customer Requirements
Delivery Condition : Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
EN 10216-5 : EN 10216 Seamless Steel 410 Tubes, EN 10216-5 1.4006 Seamless Stainless Steel Tube for pressure purposes
EN 10217-7 : EN 10217 Welded Stainless Steel 410 Tubes, Steel EN 10217-7 1.4006 Welded Tube for pressure purposes
Stainless Steel 410 Seamless Pipes
SS 410 Seamless Pipe, UNS S41000 Seamless Pipes, DIN 1.4006 Seamless Pipe, ASTM A312 TP410 Seamless Pipes
Stainless Steel 410 Seamless Tubes
SS 410 Seamless Tube, UNS S41000 Seamless Tubes, SS 1.4006 Seamless Tubes, ASTM A213 TP410 Seamless Tubing
Stainless Steel 410 Welded Pipes
SS 410 Welded Pipes, SS S41000 Welded Pipe, SS 1.4006 Welded Pipes, ASTM A312 TP410 Stainless Steel Welded Pipes
Stainless Steel 410 Welded Tubes
SS 410 Welded Tube, Stainless Steel S41000 Welded Tubes, DIN 1.4006 Welded Tubing, ASME SA 249 TP410 Stainless Steel Welded Tubes
Stainless Steel 410 ERW Pipes
Stainless Steel S41000 ERW Pipes, SS 1.4006 ERW Pipes, ASME SA312 TP410 Stainless Steel ERW Pipes, SS 410 ERW Pipes
Stainless Steel 410 ERW Tubes
SS S41000 ERW Tubes, Stainless Steel 1.4006 ERW Tubes, ASME SA312 TP410 Stainless Steel ERW Tubes, SS 410 ERW Tubing
Stainless Steel 410 EFW Pipes
UNS S41000 EFW Pipes, Stainless Steel 1.4006 EFW Pipes, ASME SA358 TP410 Stainless Steel EFW Pipes, SS 410 EFW Pipes
Chemical Composition of Stainless Steel Grade 410 Pipes & Tubes
Grade | C | Mn | Si | P | S | Cr | Ni |
SS 410 | 0.15% | 1.00% | 1.00% | 0.040% | 0.030% | 11.50 - 13.50% | 0.75% |
Mechanical Properties of ASME SA312 Stainless Steel 410 Pipes / SA213 Stainless Steel 410 Tubing
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.0 g/cm3 | 1454 °C (2650 °F) | 480 min | 275 min | 16 min . |
People Also Searched For
stainless steel 410 u shaped tubes, jindal stainless steel 410 welded pipes, electric resistance welded stainless steel 410 pipe and tube, ss 410 finned tube, seamless and welded austenitic stainless steel tubing grade 410, 410 stainless steel pipes in mumbai, stainless steel tube grade 410, stainless steel 410 pipe suppliers, stainless steel 410 tube suppliers, stainless steel 410 pipes diameters, ss 410 seamless tube price, jindal stainless steel 410 tubes, grade 410 stainless steel pipes and tubes manufacturer in india, stainless steel 410 heat-exchanger tubes, schedule 10 ss 410 pipe thickness, 410 stainless steel tube specifications, 410 stainless steel pipe price list, stainless steel 410 pipe gauge chart, stainless steel 410 pipe thickness, asme sa 312 tp410 stainless steel pipes dealer, stainless steel 410 tubing gauge chart, stainless steel 410 pipes exporter, sizes of stainless steel 410 pipes, standard schedule 10s stainless steel pipe 410, 3 inch steel 410 pipe price, 410 ss guage pipes, stainless steel 410 tube diameters, price of stainless steel 410 pipes, ss 410 pipe price, ss 410 pipe price per meter, stainless steel 410 pipes supplier in india, 410 stainless steel pipe specifications pdf, stainless steel 410 pipe thickness, stainless steel 410 tubes weight chart, asme sa 213 tp 410 stainless steel tubes, stainless steel 410 pipe specifications astm, electric-fusion-welded austenitic stainless steel 410 pipe, 410 stainless steel pipe schedule 80, jindal steel pipe 410 price, stainless steel 410 pipes for sale, stainless steel 410 pipes dimensions, ss 410 condenser tubes, austenitic stainless steel 410 tubes, ss 410 seamless pipe sizes, jindal ss 410 pipe weight chart, stainless steel 410 tubes price list in india, 410 stainless steel pipe chemical composition, stainless steel pipe 410 grade weight, stainless steel 410 tubes dimensions, austenitic stainless steel 410 pipes, stainless steel 410 tubes prices, ss 410 mechanical tubing, stainless steel 410 electropolished pipes, 410 ss sanitary tubing, 410 stainless steel pipe specifications, stainless steel 410 pipe price per kg in india, stainless steel pipe aisi 410, jindal stainless steel 410 pipes, stainless steel 410 pipe weight, 410 schedule 10 stainless steel, weight of ss 410 pipe schedule 10, stainless steel 410 boiler tubes, stainless steel 410 pipe weight chart, stainless steel 410 superheater tube, ss 410 pipe, 410 stainless steel pipe working pressure, ss 410 tube sizes india, ss 410 electro polished tubes, stainless steel 410 pipe price list in india, stainless steel pipe 410 price per kg manufacturers india, schedule 40 stainless steel 410 pipe dimensions .
Oil and Gas
Chemical Industry
Power Plant
Food Industry
Petrochemical
Automobile
Application Industries
- ASTM A312 TP410 Stainless Steel Pipe uses in Plumbing
- ASTM A213 TP410 Stainless Steel Tube uses in Heating
- Stainless Steel 410 Pipes & Tubes uses in Water Supply Systems
- 410 Stainless Steel Pipes & Tubes uses in Paper & Pulp Industry
- Stainless Steel 410 Welded Pipes and Tubes uses in General Purpose Applications
- SS 410 Seamless Pipes and Tubes uses in Fabrication Industry
